Individual hose record
4446841 Hose Repair Specifications
Excavator · Hitachi · ZX250F · Control Lever
Finished length2,900 mm
Locate this hose

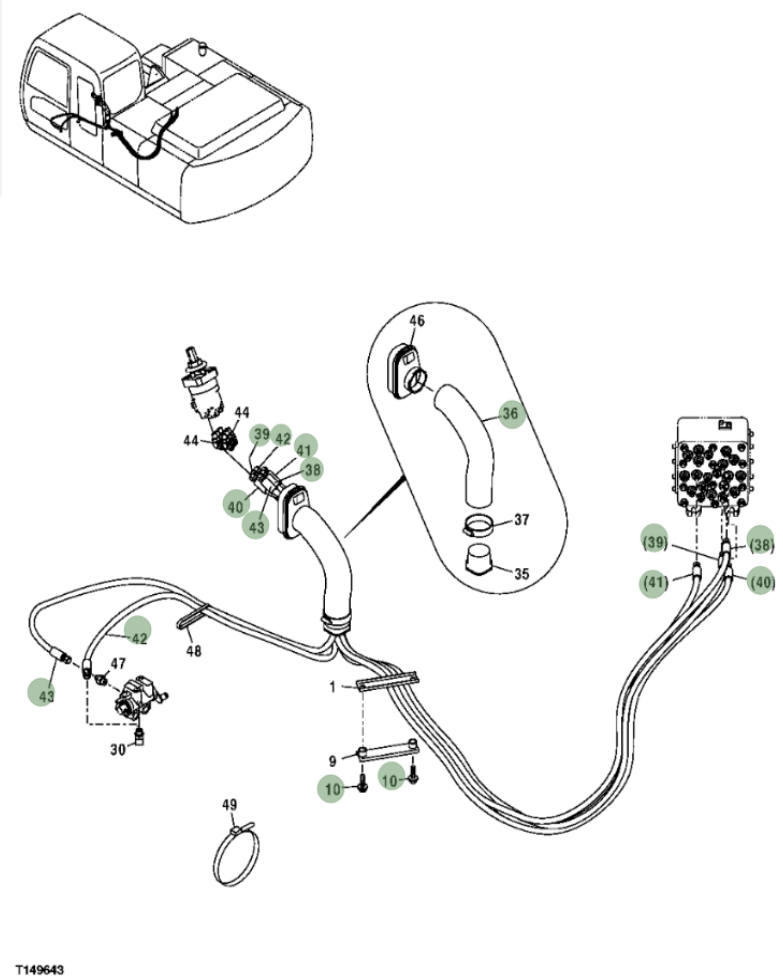

Installation diagram — Pipe No. 39
Locate Pipe No. 39 in the diagram, then confirm part number 4446841 before removing the hose.
Repair specifications
- Part number
- 4446841
- Diagram pipe number
- 39
- Installation route
- 右手柄~中转接头
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 2,900 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
