Individual hose record

DS2120036 Hose Repair Specifications

Excavator · Doosan · DX140LC-5 · Attachments – Breaker

Finished length290 mm

Locate this hose

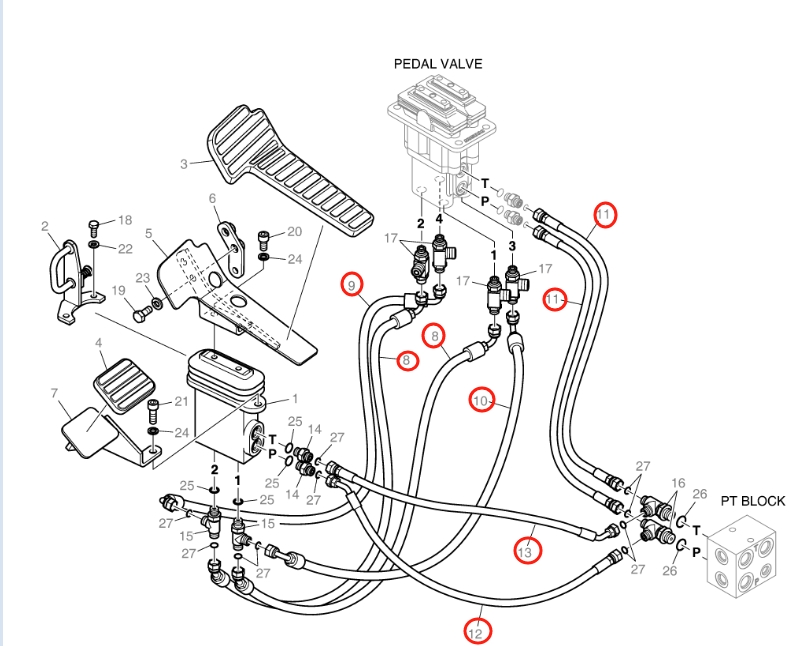

Installation diagram — Pipe No. 12

Locate Pipe No. 12 in the diagram, then confirm part number DS2120036 before removing the hose.

Part number: DS2120036
Diagram pipe number: 12
Installation route: 破碎器踏板P口~进回油阀P口
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 290 mm
Working pressure: 22.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 45°美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 3

Installation route: 液压泵PSV口~EPPR阀P口

Length: 410 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

Diagram Pipe No. 2

Installation route: 分配阀PA2口~液压油箱

Length: 1,270 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 5

Installation route: 液压油箱~EPPR阀T口

Length: 1,460 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

Diagram Pipe No. 11

Installation route: EPPR阀P口~进回油阀

Length: 300 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
