Individual hose record
4405561 Hose Repair Specifications
Excavator · Hitachi · EX330LC-5 · Solenoid Valve
Finished length2,600 mm
Locate this hose

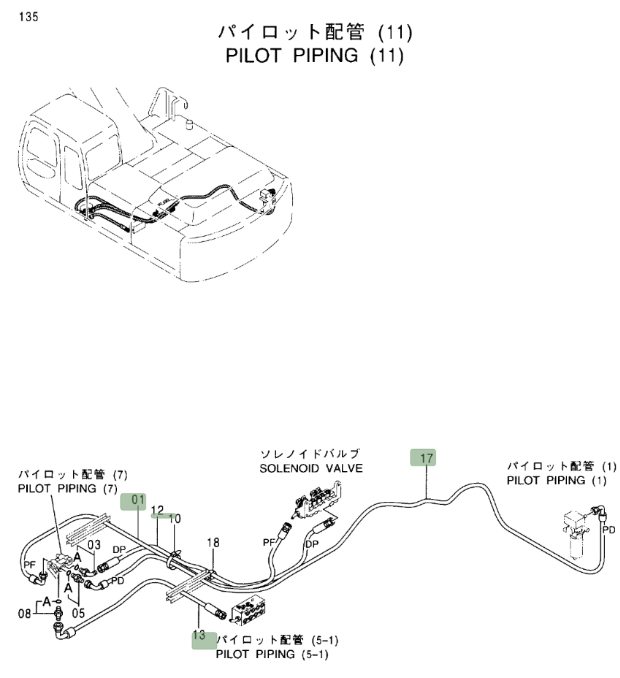

Installation diagram — Pipe No. 12
Locate Pipe No. 12 in the diagram, then confirm part number 4405561 before removing the hose.
Repair specifications
- Part number
- 4405561
- Diagram pipe number
- 12
- Installation route
- 电磁阀~进回油阀
- Hose specification
- DN12;1SN-8;7Mpa
- Finished length
- 2,600 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
