Individual hose record
4601300 Hose Repair Specifications
Excavator · Hitachi · ZX210W · Hydraulic Pump
Finished length1,650 mm
Locate this hose

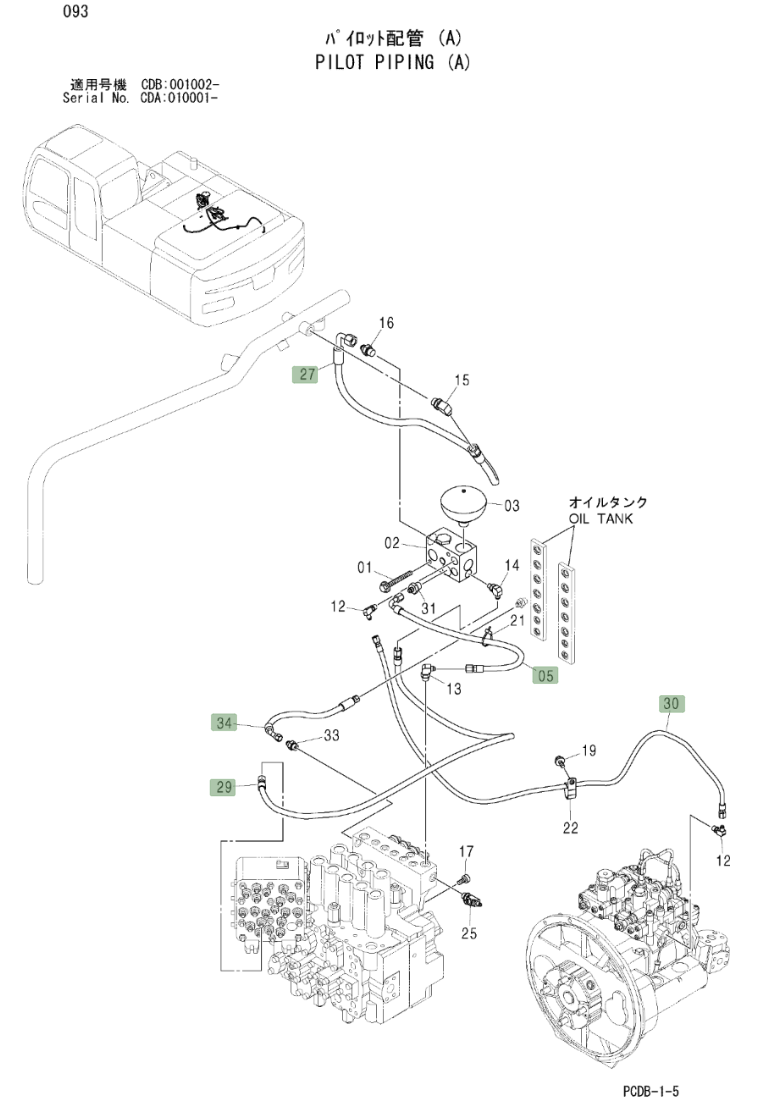

Installation diagram — Pipe No. 30
Locate Pipe No. 30 in the diagram, then confirm part number 4601300 before removing the hose.
Repair specifications
- Part number
- 4601300
- Diagram pipe number
- 30
- Installation route
- 液压泵~蓄能器
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 1,650 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
