Individual hose record
4484593 Hose Repair Specifications
Excavator · Hitachi · ZX210W · Hydraulic Pump
Finished length850 mm
Locate this hose

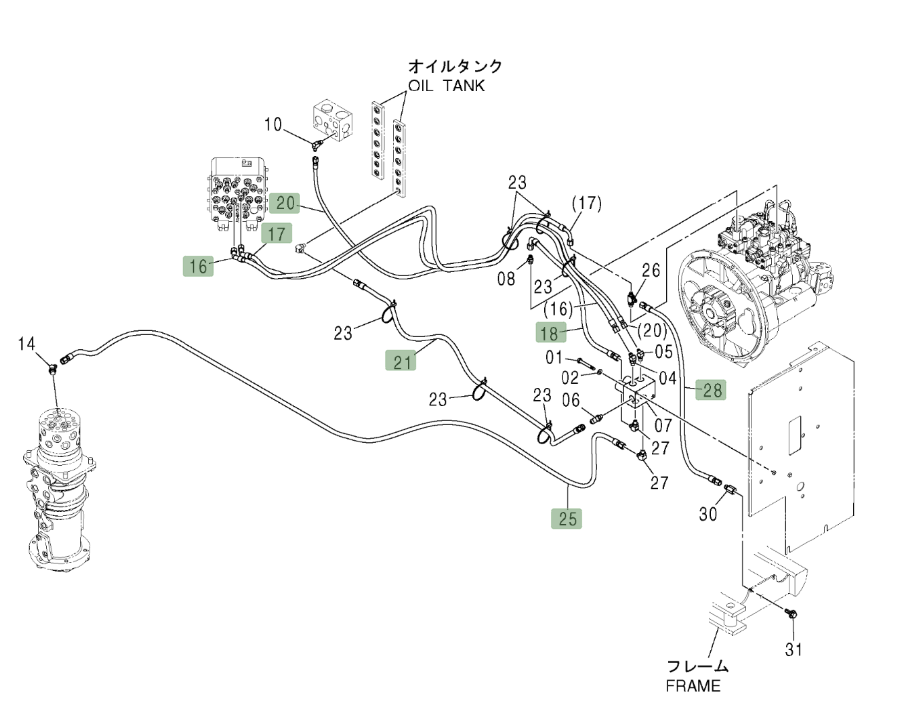

Installation diagram — Pipe No. 28
Locate Pipe No. 28 in the diagram, then confirm part number 4484593 before removing the hose.
Repair specifications
- Part number
- 4484593
- Diagram pipe number
- 28
- Installation route
- 液压泵~堵头(车架)
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 850 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
