Individual hose record
DS20131714 Hose Repair Specifications
Excavator · Doosan · DX140W-5 · Swing Motor
Finished length600 mm
Locate this hose

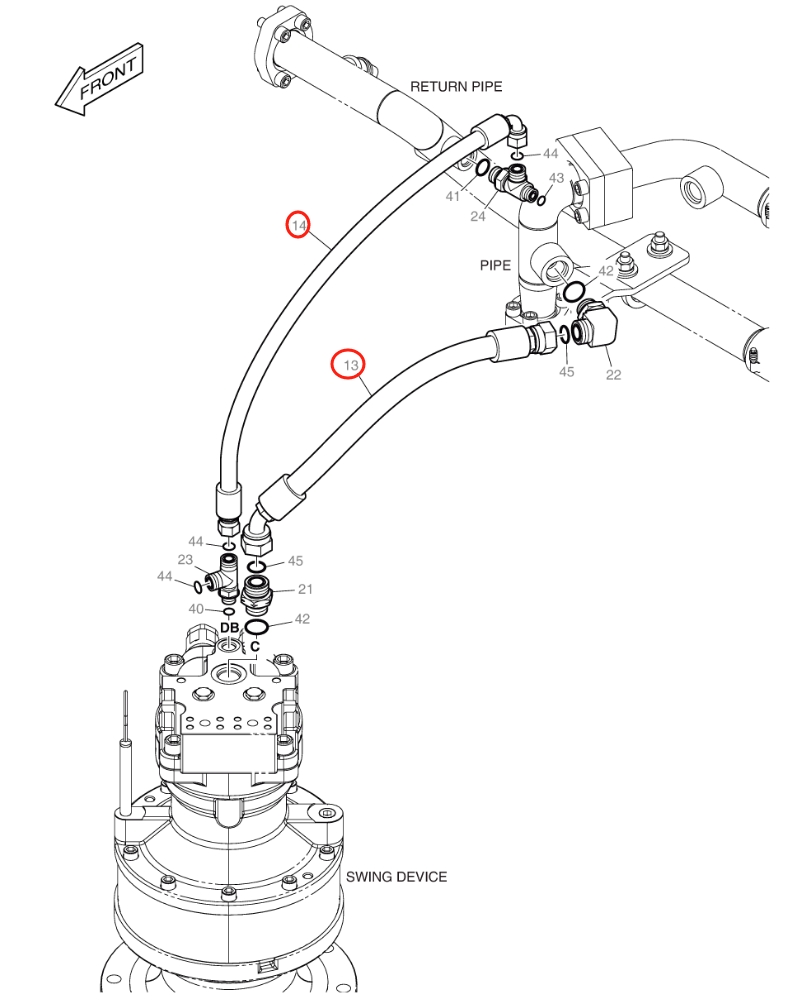

Installation diagram — Pipe No. 14
Locate Pipe No. 14 in the diagram, then confirm part number DS20131714 before removing the hose.
Repair specifications
- Part number
- DS20131714
- Diagram pipe number
- 14
- Installation route
- 回转马达DB口~回油铁管(液压油箱)
- Hose specification
- DN13;1SN-08;16MPa
- Finished length
- 600 mm
- Working pressure
- 16 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Quantity
- 1
