Individual hose record
4465684 Hose Repair Specifications
Excavator · Hitachi · ZX370 · Control Valve
Finished length1,100 mm
Locate this hose

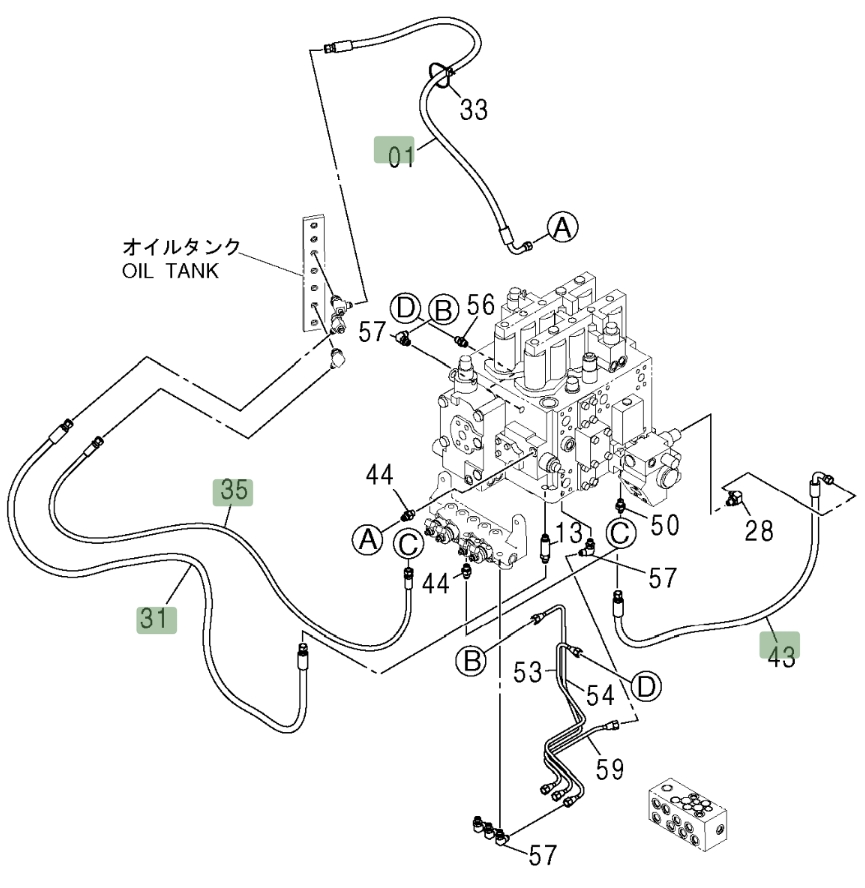

Installation diagram — Pipe No. 1
Locate Pipe No. 1 in the diagram, then confirm part number 4465684 before removing the hose.
Repair specifications
- Part number
- 4465684
- Diagram pipe number
- 1
- Installation route
- 分配阀前~液压油箱
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 1,100 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 1
