DS2095098 Hose Repair Specifications

Excavator · Doosan · DX85R-3 · Swivel Joint

Finished length470 mm

Locate this hose

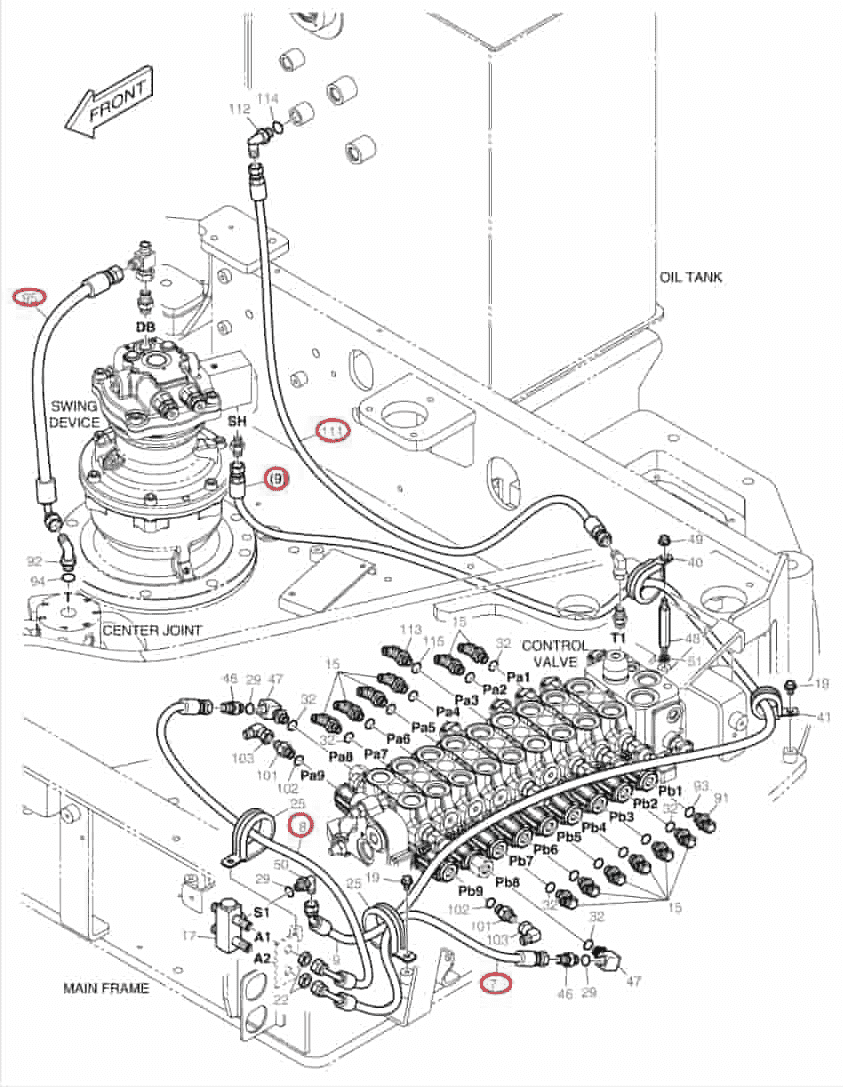

Installation diagram — Pipe No. 95

Locate Pipe No. 95 in the diagram, then confirm part number DS2095098 before removing the hose.

Part number: DS2095098
Diagram pipe number: 95
Installation route: 回转接头T口~回转马达DB口
Hose specification: DN10;1SN-06;18MPa
Finished length: 470 mm
Working pressure: 18 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 75°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 12

Installation route: 回转接头A口~分配阀A4口

Length: 920 mm
Specification: DN10;2SN-06;33MPa
Left fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 6

Installation route: 回转接头C口~分配阀B7口

Length: 990 mm
Specification: DN13;4SP-08;41.5MPa
Left fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 11

Installation route: 回转接头D口~分配阀B4口

Length: 950 mm
Specification: DN10;2SN-06;33MPa
Left fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

Diagram Pipe No. 7

Installation route: Lower swivel joint → travel motorOriginal Chinese: 回转接头下~行走马达

Length: 1,300 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

Diagram Pipe No. 6

Installation route: 回转接头PS口~右行走马达P口

Length: 1,380 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
