Individual hose record
DS2092129 Hose Repair Specifications
Excavator · Doosan · DX85R-3 · Swivel Joint
Finished length1,300 mm
Locate this hose

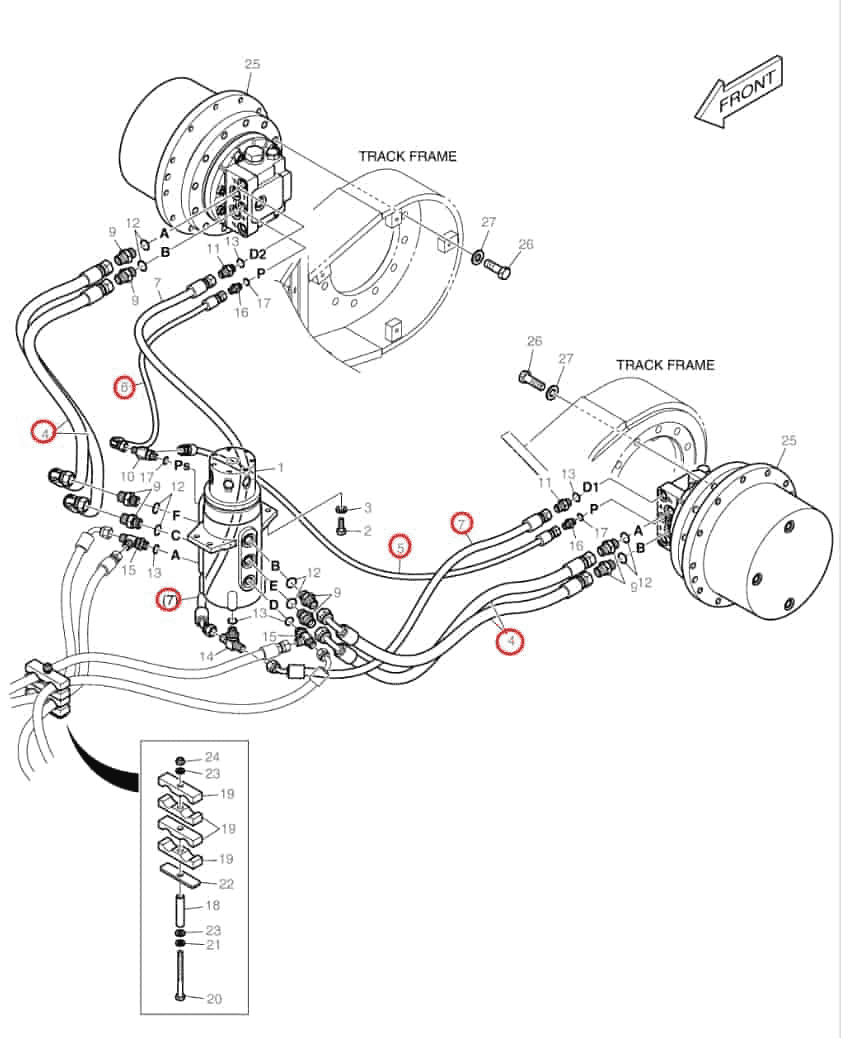

Installation diagram — Pipe No. 7
Locate Pipe No. 7 in the diagram, then confirm part number DS2092129 before removing the hose.
Repair specifications
- Part number
- DS2092129
- Diagram pipe number
- 7
- Installation route
- Lower swivel joint → travel motorOriginal Chinese: 回转接头下~行走马达
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 1,300 mm
- Working pressure
- 18 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
- Quantity
- 2
