Individual hose record
KSJ2909 Hose Repair Specifications
Excavator · Case · CX370D NLC · Hydraulic Pump
Finished length780 mm
Locate this hose

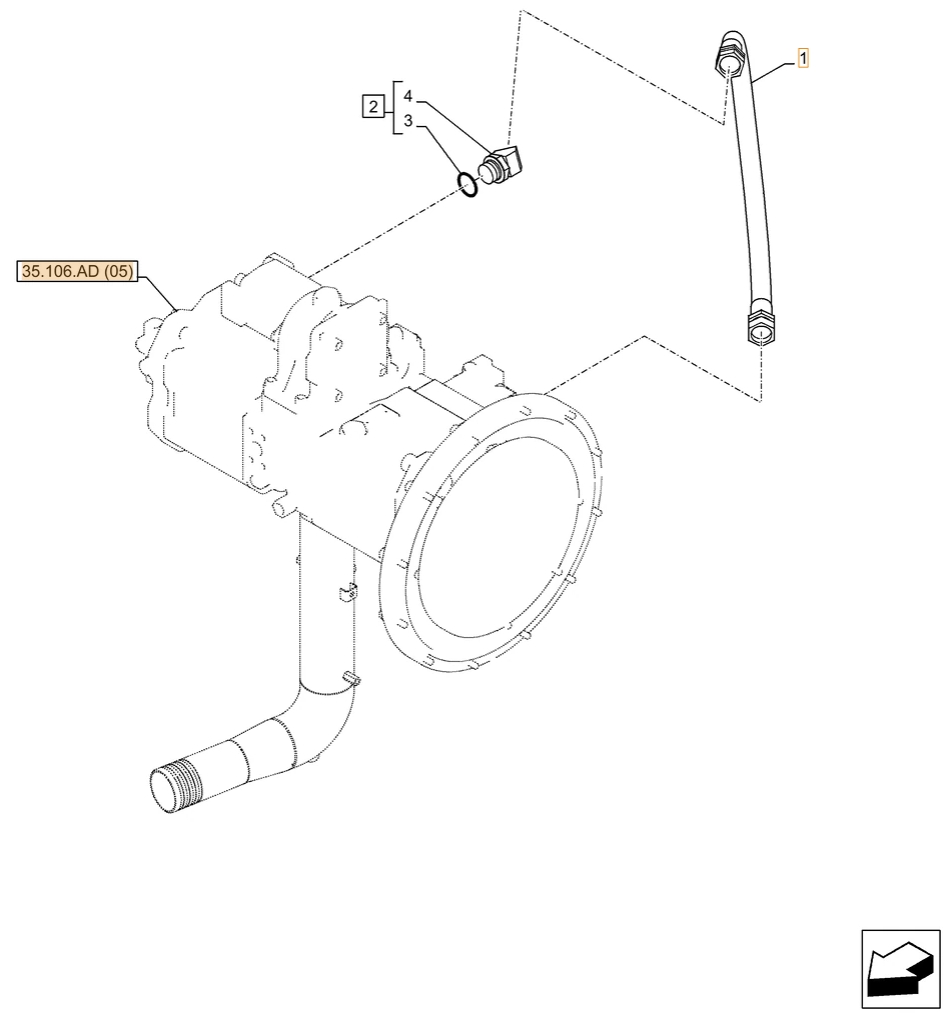

Installation diagram — Pipe No. 1
Locate Pipe No. 1 in the diagram, then confirm part number KSJ2909 before removing the hose.
Repair specifications
- Part number
- KSJ2909
- Diagram pipe number
- 1
- Installation route
- 液压泵左~液压泵右
- Hose specification
- DN25;2SN-16;16.5MPa
- Finished length
- 780 mm
- Working pressure
- 16.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Quantity
- 1
