Individual hose record

DS20111208 Hose Repair Specifications

Excavator · Doosan · DX150LC-9C · Boom Assembly

Finished length700 mm

Locate this hose

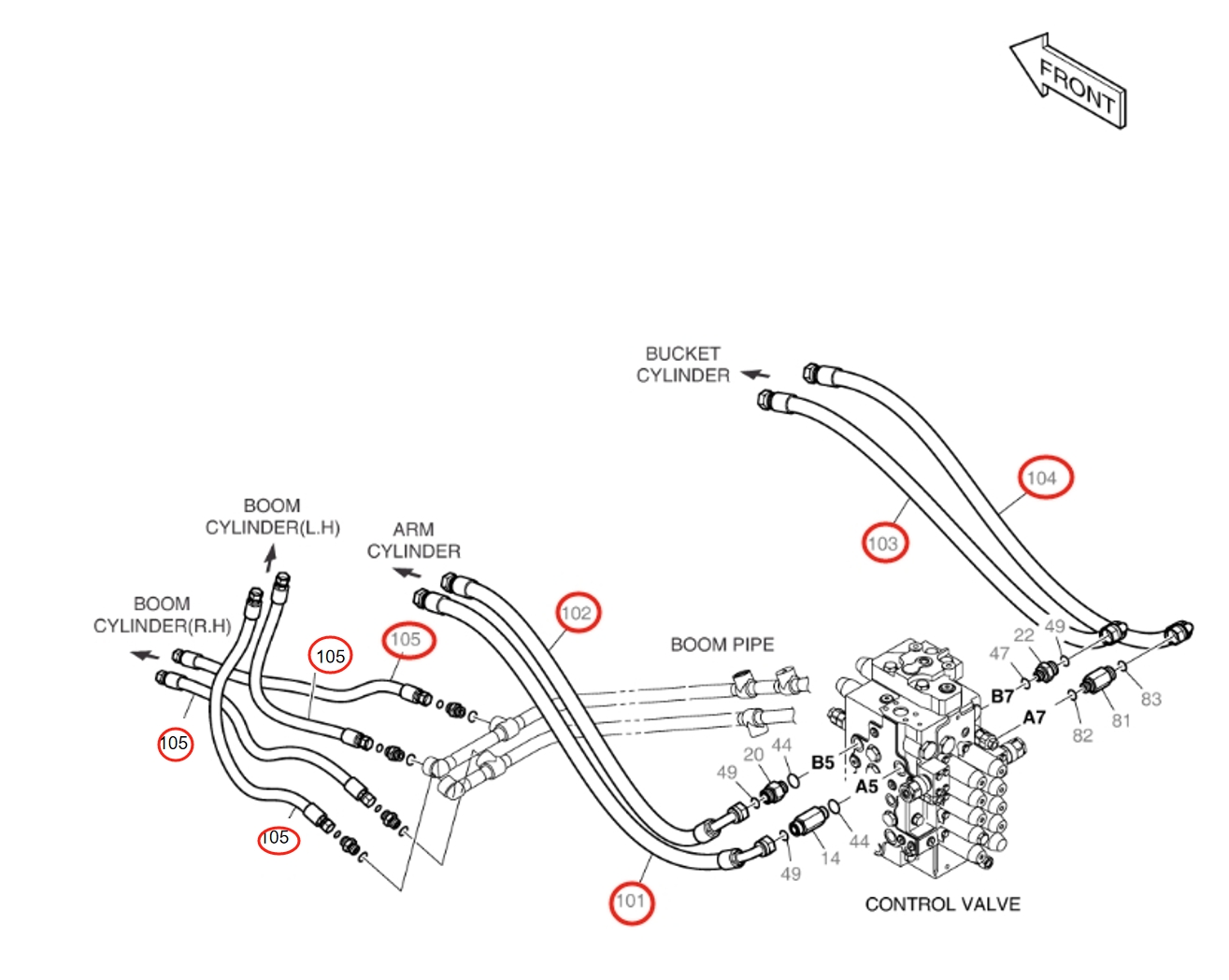

Installation diagram — Pipe No. 105

Locate Pipe No. 105 in the diagram, then confirm part number DS20111208 before removing the hose.

Part number: DS20111208
Diagram pipe number: 105
Installation route: 大臂油缸
Hose specification: DN13;4SP-08;41.5MPa
Finished length: 700 mm
Working pressure: 41.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 4

Same system

Hose record

Installation route: 大臂左2

Length: 1,070 mm
Specification: DN19;4SH-12;42MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

Hose record

Installation route: 大臂左1

Length: 1,200 mm
Specification: DN19;4SH-12;42MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

Hose record

Installation route: 大臂左3

Length: 1,100 mm
Specification: DN19;4SH-12;42MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

Hose record

Installation route: 大臂左3

Length: 1,080 mm
Specification: DN19;4SH-12;42MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

Hose record

Installation route: 大臂左4

Length: 1,220 mm
Specification: DN19;4SH-12;42MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

Diagram Pipe No. 16

Installation route: Arm cylinder — rightOriginal Chinese: 小臂油缸右

Length: 790 mm
Specification: DN19;4SH-12;42MPa
Left fitting: Light-series flangeOriginal Chinese: 法兰-轻型
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
