Individual hose record
4462364 Hose Repair Specifications
Excavator · Hitachi · ZX450LC · Attachments – Quick Coupler
Finished length260 mm
Locate this hose

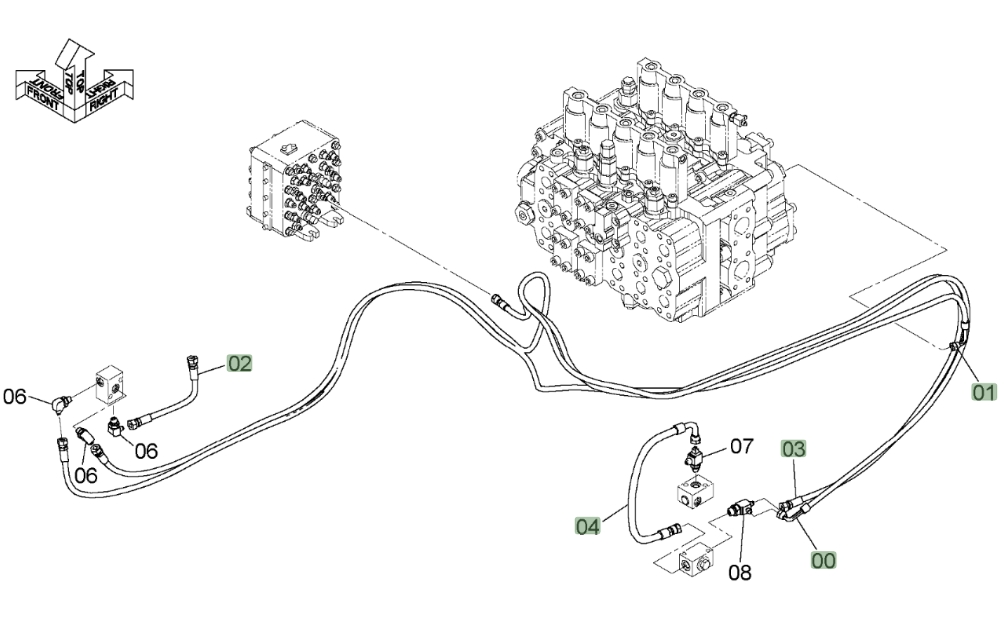

Installation diagram — Pipe No. 2
Locate Pipe No. 2 in the diagram, then confirm part number 4462364 before removing the hose.
Repair specifications
- Part number
- 4462364
- Diagram pipe number
- 2
- Installation route
- 过渡阀块(快换)~
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 260 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
