Individual hose record
2184-1196D65 Hose Repair Specifications
Excavator · Doosan · DX140LCR-3 · Boom Assembly
Finished length870 mm
Locate this hose

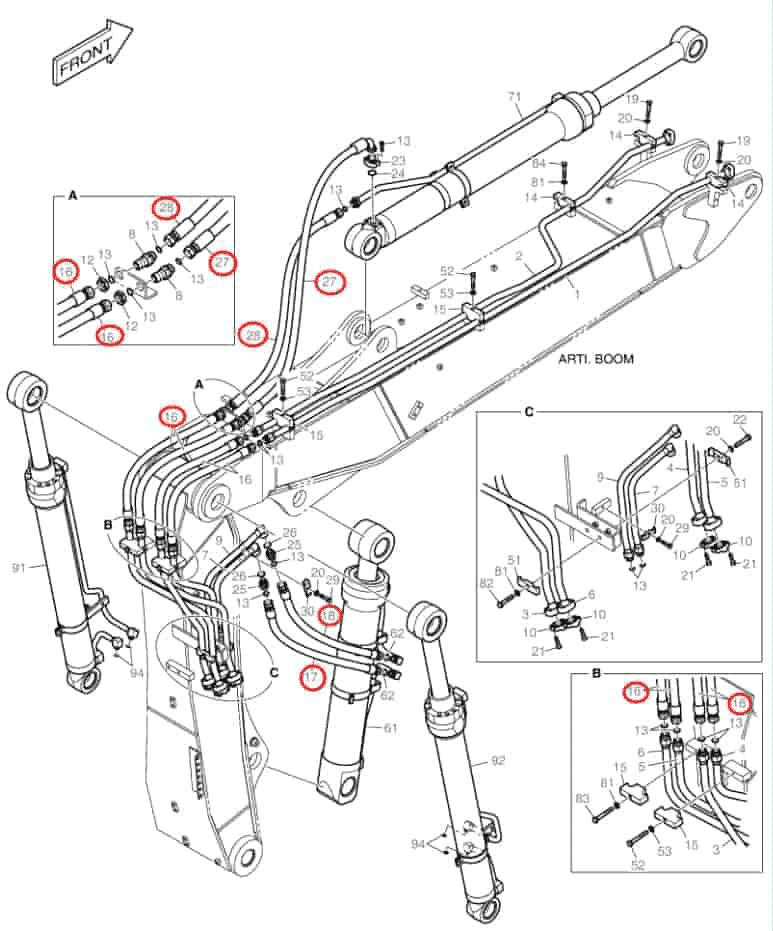

Installation diagram — Pipe No. 28
Locate Pipe No. 28 in the diagram, then confirm part number 2184-1196D65 before removing the hose.
Repair specifications
- Part number
- 2184-1196D65
- Diagram pipe number
- 28
- Installation route
- Arm cylinder — leftOriginal Chinese: 小臂油缸左
- Hose specification
- -
- Finished length
- 870 mm
- Left fitting
- Female threadOriginal Chinese: 内螺纹
- Right fitting
- Female threadOriginal Chinese: 内螺纹
- Quantity
- 1
