Individual hose record
4364425 Hose Repair Specifications
Excavator · Hitachi · EX700 · Swing Motor
Finished length1,700 mm
Locate this hose

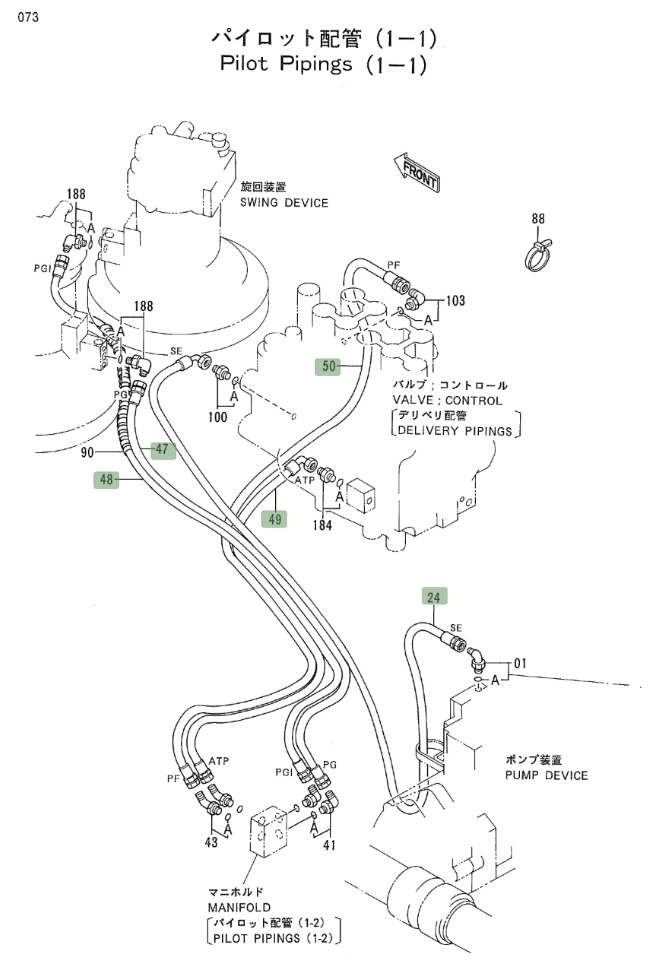

Installation diagram — Pipe No. 47
Locate Pipe No. 47 in the diagram, then confirm part number 4364425 before removing the hose.
Repair specifications
- Part number
- 4364425
- Diagram pipe number
- 47
- Installation route
- 回转马达(左)~过渡阀块(液压泵前)
- Hose specification
- DN10;1SN-6;18MPa
- Finished length
- 1,700 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥双六角
- Right fitting
- 美制内螺纹74°内锥双六角
- Quantity
- 1
