KHJ2327 Hose Repair Specifications

Excavator · Case · CX210BLR · Control Lever

Finished length1,550 mm

Locate this hose

Installation diagram — Pipe No. 92

Locate Pipe No. 92 in the diagram, then confirm part number KHJ2327 before removing the hose.

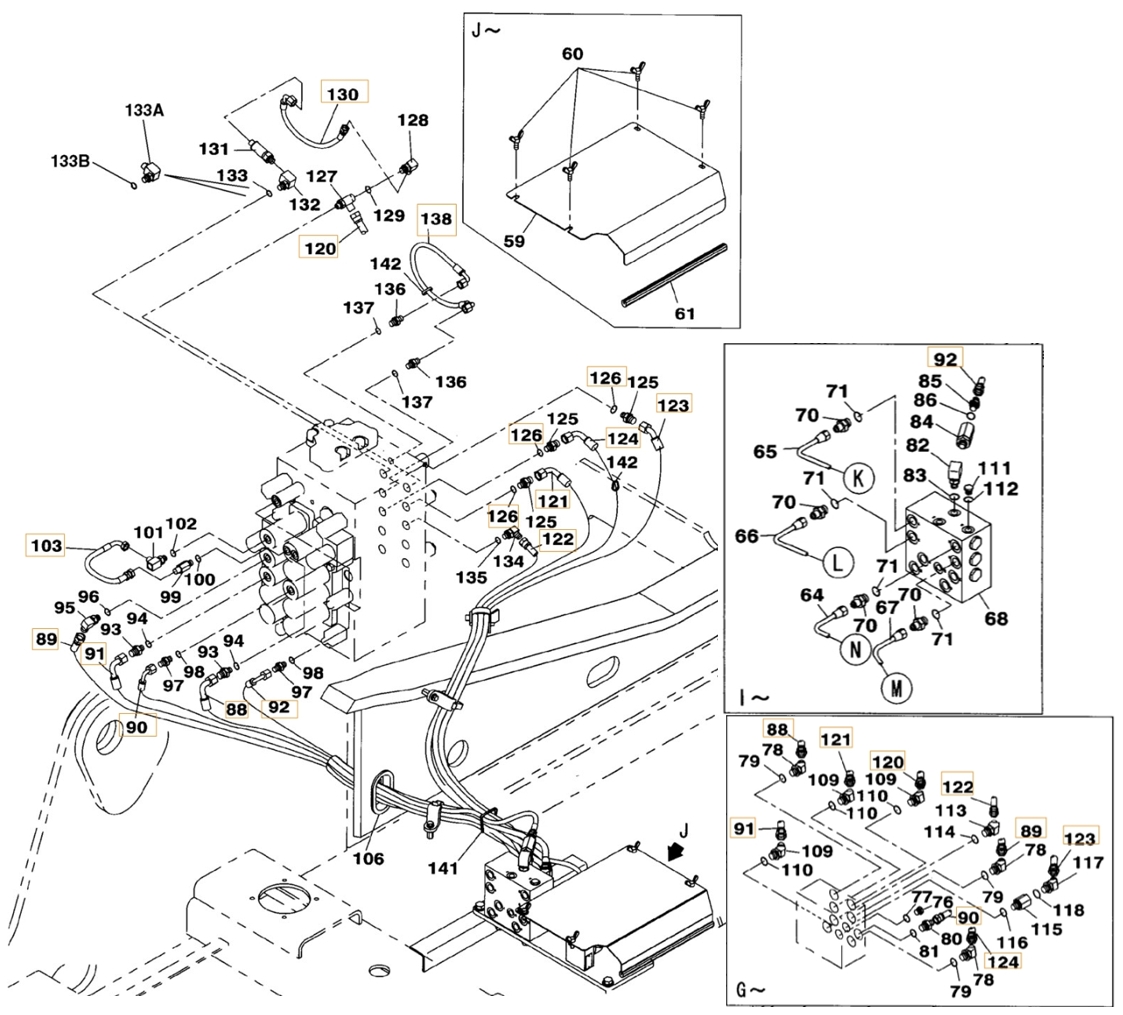

Case CX210BLR installation diagram showing hydraulic hose KHJ2327 at Pipe No. 92 — **Case CX210BLR**Part KHJ2327 · Pipe No. 92Open full-size diagram

Repair specifications

Part number: KHJ2327
Diagram pipe number: 92
Installation route: 中转接头~分配阀前
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,550 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
