Individual hose record

4368038 Hose Repair Specifications

Excavator · Hitachi · ZX80 · Attachments

Finished length1,350 mm

Locate this hose

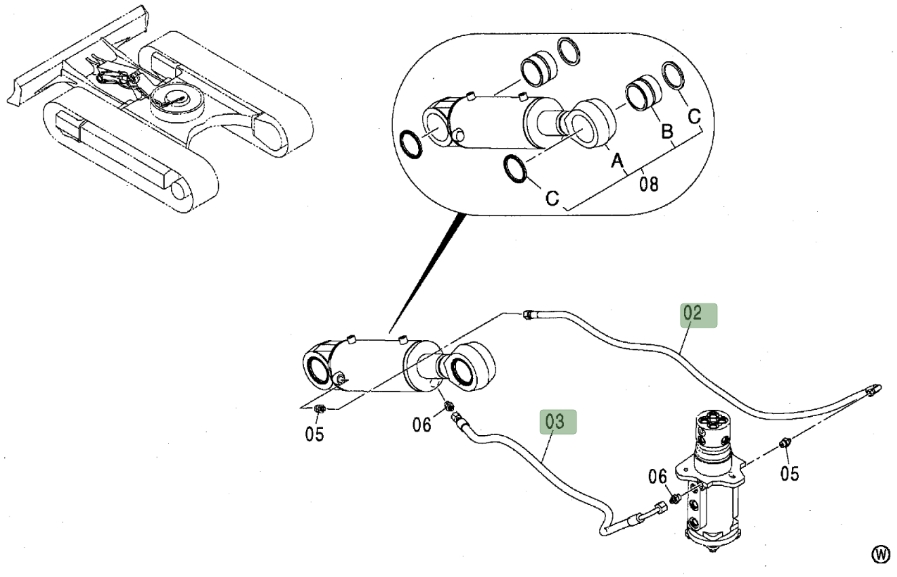

Installation diagram — Pipe No. 2

Locate Pipe No. 2 in the diagram, then confirm part number 4368038 before removing the hose.

Hitachi ZX80 installation diagram showing hydraulic hose 4368038 at Pipe No. 2 — Hitachi ZX80Part 4368038 · Pipe No. 2Open full-size diagram

Repair specifications

Part number: 4368038
Diagram pipe number: 2
Installation route: 回转接头~推土铲油缸
Hose specification: DN10;4SH-06;44.5MPa
Finished length: 1,350 mm
Working pressure: 44.5 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥
Quantity: 1
