Individual hose record
4450527 Hose Repair Specifications
Excavator · Hitachi · ZX80 · Attachments
Finished length750 mm
Locate this hose

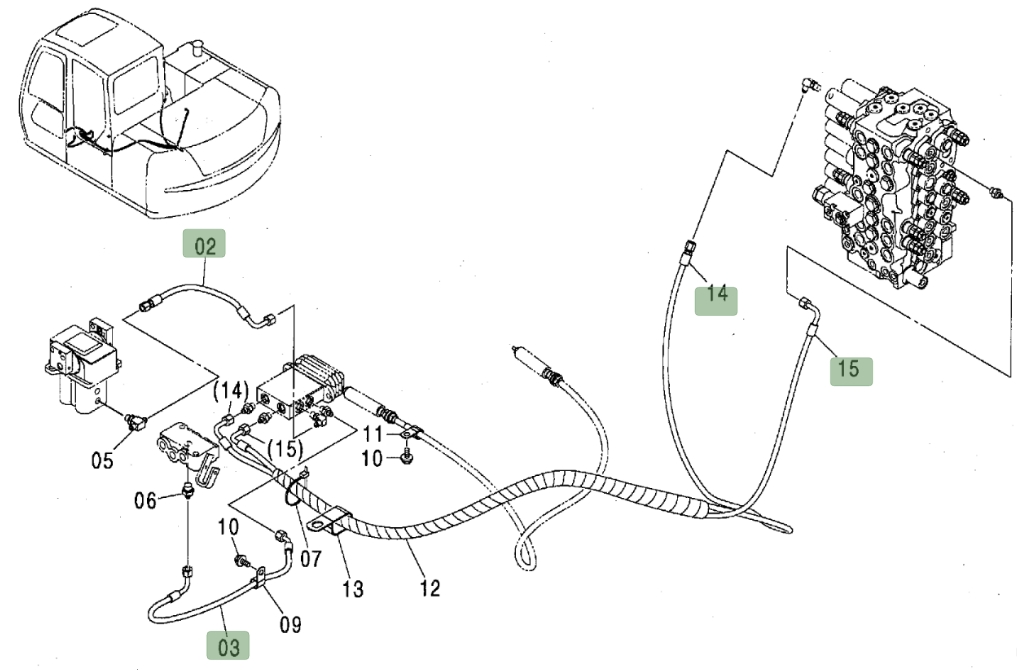

Installation diagram — Pipe No. 3
Locate Pipe No. 3 in the diagram, then confirm part number 4450527 before removing the hose.
Repair specifications
- Part number
- 4450527
- Diagram pipe number
- 3
- Installation route
- 推土铲手柄~进回油阀
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 750 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 90°美制内螺纹74°内锥
- Right fitting
- 45°美制内螺纹74°内锥
- Quantity
- 1
