Individual hose record

KHJ2067 Hose Repair Specifications

Excavator · Case · CX160C · Hydraulic Tank

Finished length2,200 mm

Locate this hose

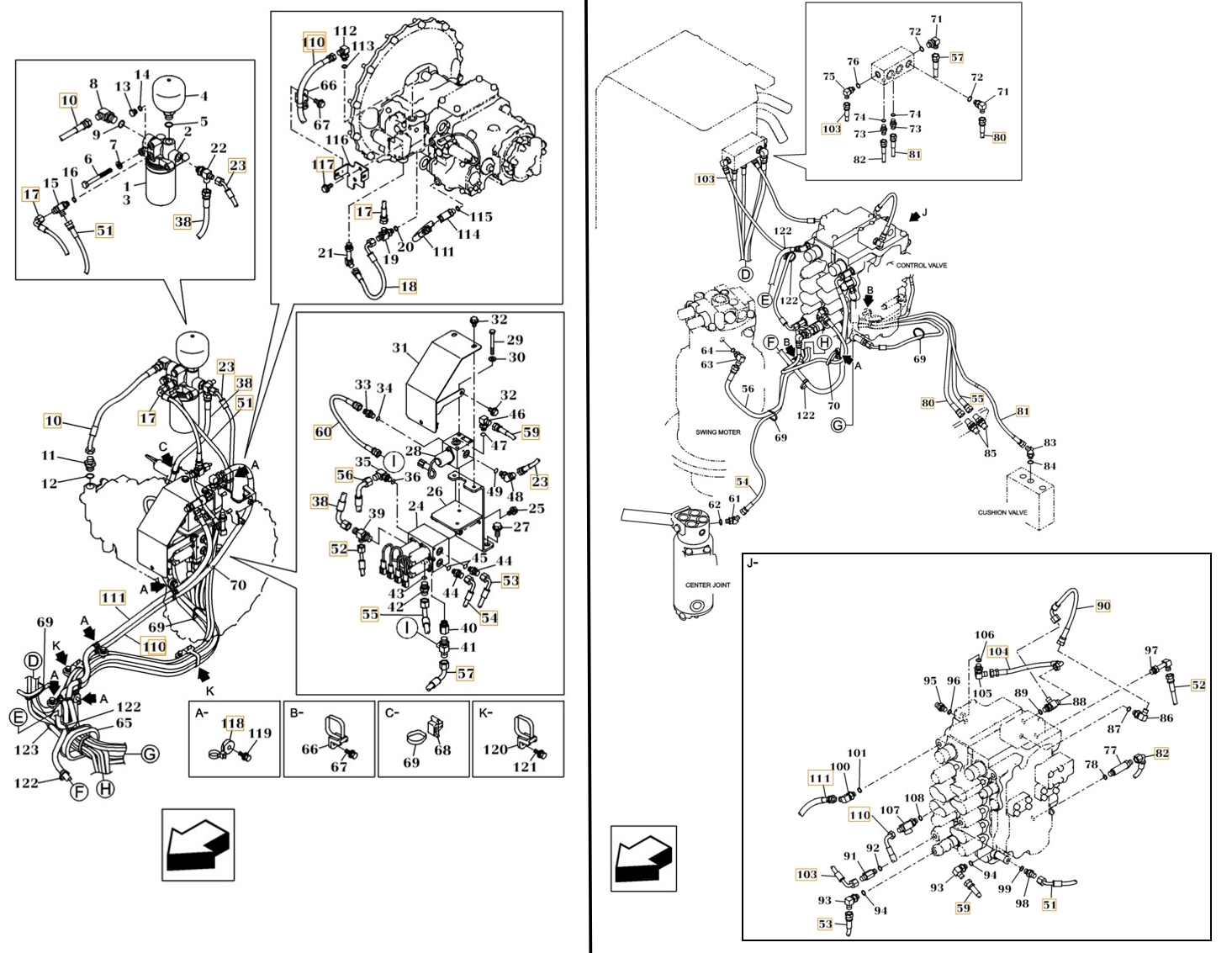

Installation diagram — Pipe No. 81

Locate Pipe No. 81 in the diagram, then confirm part number KHJ2067 before removing the hose.

Part number: KHJ2067
Diagram pipe number: 81
Installation route: 液压油箱~缓冲阀
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 2,200 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 80

Installation route: 液压油箱~接头(进回油阀)

Length: 1,900 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 12

Installation route: 液压油箱下~液压油箱接块

Length: 280 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
