Individual hose record

DS2093115 Hose Repair Specifications

Excavator · Doosan · DX35Z · Attachments – Lock Valve

Finished length600 mm

Locate this hose

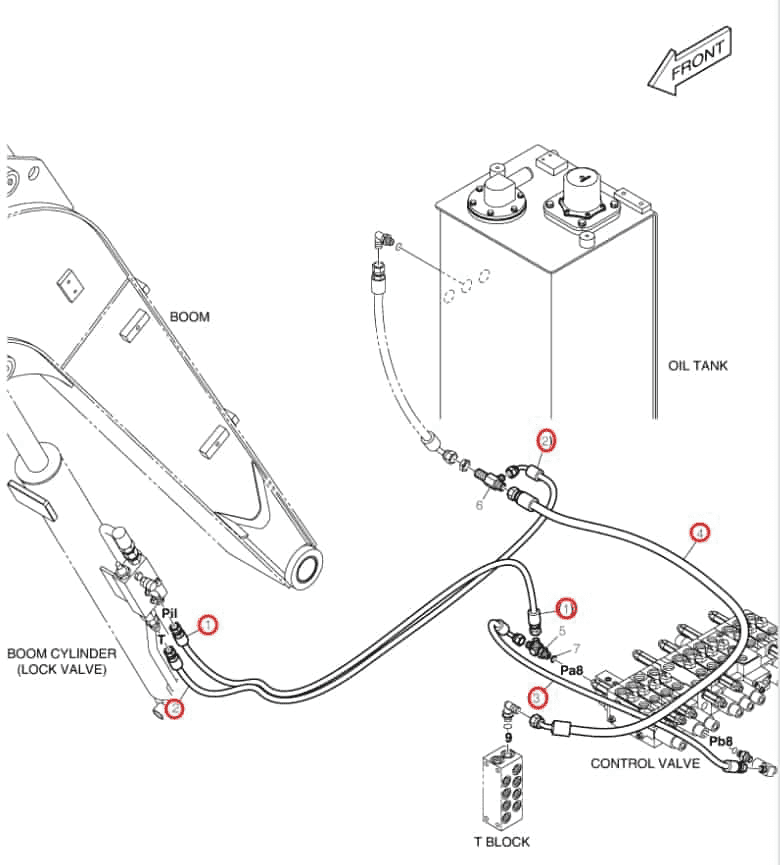

Installation diagram — Pipe No. 3

Locate Pipe No. 3 in the diagram, then confirm part number DS2093115 before removing the hose.

Part number: DS2093115
Diagram pipe number: 3
Installation route: 分配阀PA8口~分配阀PB8口
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 600 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 4

Installation route: 回转马达DB口~过渡接头(液压油箱)

Length: 670 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 3

Installation route: 分配阀(小臂内收)口~分配阀PB5口

Length: 900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
