Individual hose record
730503001553 Hose Repair Specifications
Excavator · Sunward · SWE25UF · Hydraulic Pump
Finished length1,300 mm
Locate this hose

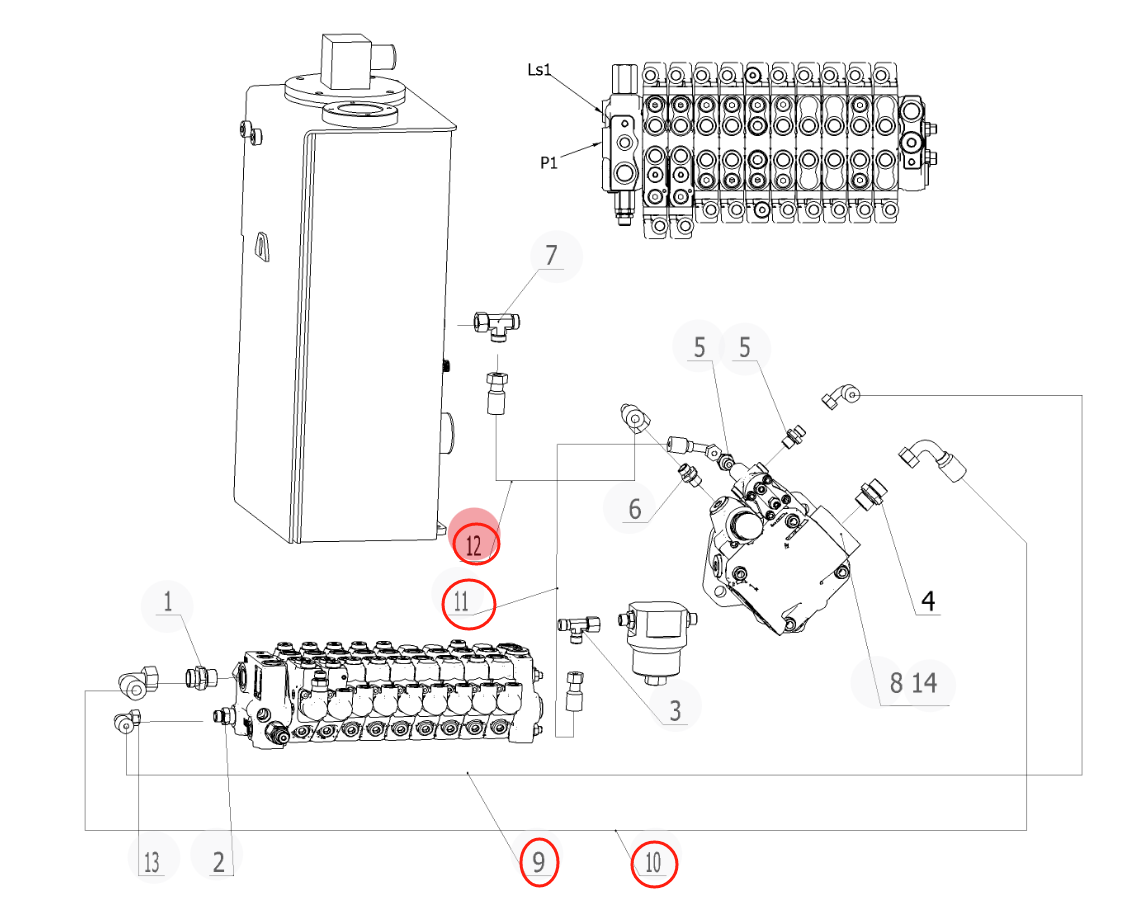

Installation diagram — Pipe No. 9
Locate Pipe No. 9 in the diagram, then confirm part number 730503001553 before removing the hose.
Repair specifications
- Part number
- 730503001553
- Diagram pipe number
- 9
- Installation route
- 液压泵~分配阀Ls1
- Hose specification
- DN6;2SN-04;34.5MPa
- Finished length
- 1,300 mm
- Working pressure
- 34.5 MPa
- Left fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Quantity
- 1
