Individual hose record
4234322-S Hose Repair Specifications
Excavator · Hitachi · ZX250LC-5G · Hydraulic Pump
Finished length400 mm
Locate this hose

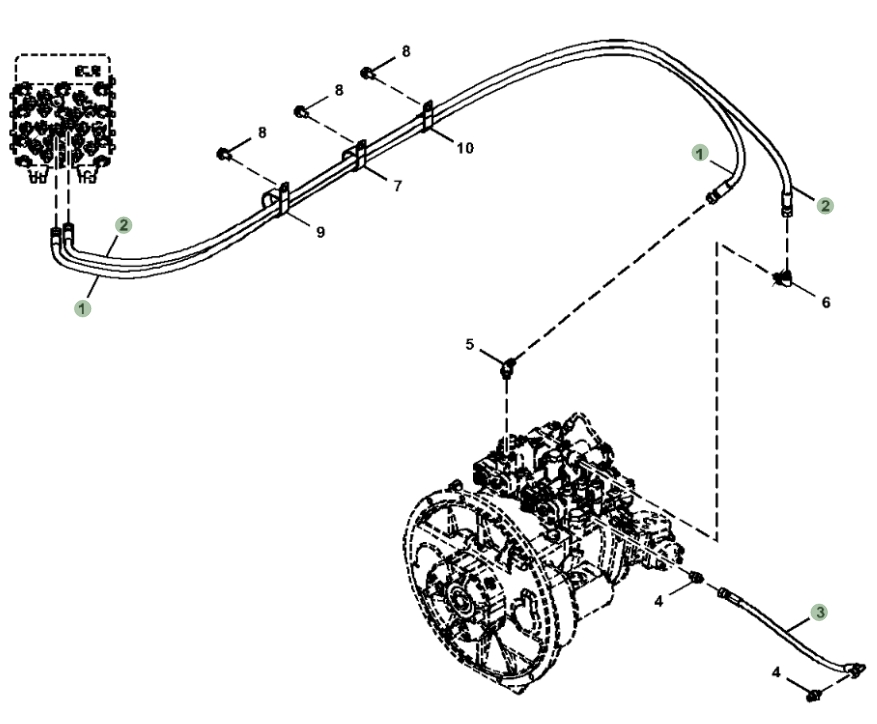

Installation diagram — Pipe No. 3
Locate Pipe No. 3 in the diagram, then confirm part number 4234322-S before removing the hose.
Repair specifications
- Part number
- 4234322-S
- Diagram pipe number
- 3
- Installation route
- 液压泵~先导滤芯
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 400 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
