2184-1046D89 Hose Repair Specifications

Excavator · Doosan · DX160LC · Swivel Joint

Finished length2,650 mm

Locate this hose

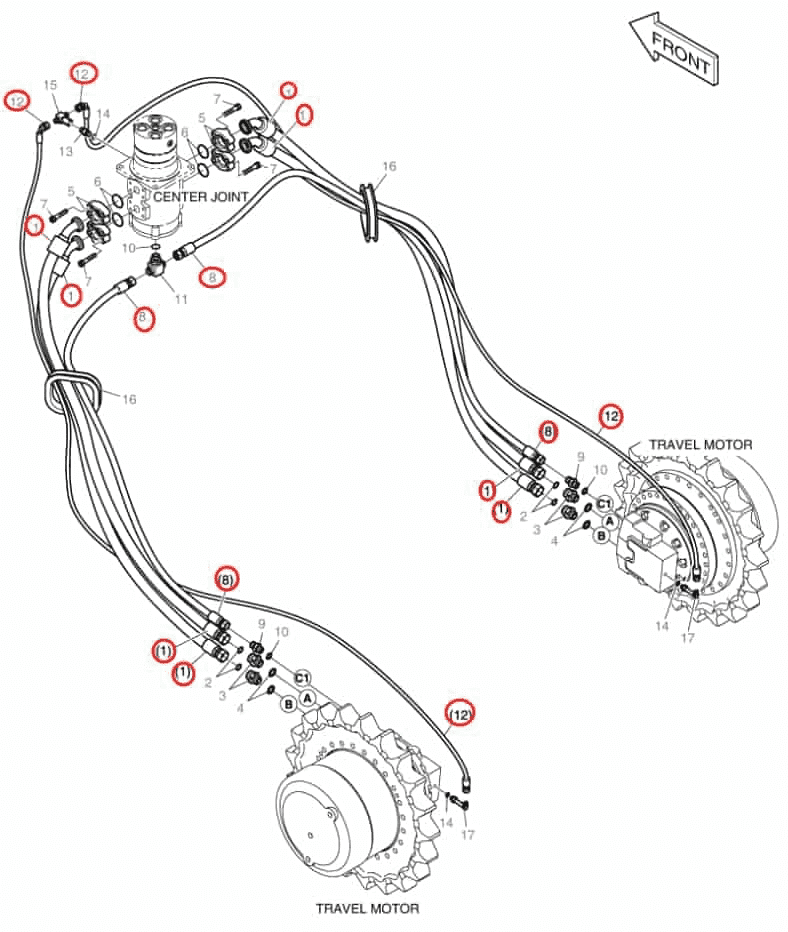

Installation diagram — Pipe No. 12

Locate Pipe No. 12 in the diagram, then confirm part number 2184-1046D89 before removing the hose.

Part number: 2184-1046D89
Diagram pipe number: 12
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 2,650 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 2

Same system

Diagram Pipe No. 8

Installation route: Lower swivel joint → travel motorOriginal Chinese: 回转接头下~行走马达

Length: 1,900 mm
Specification: DN13;1SN-08;16MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
