Individual hose record

2184-1026D435 Hose Repair Specifications

Excavator · Doosan · DX160LC · Swivel Joint

Finished length1,900 mm

Locate this hose

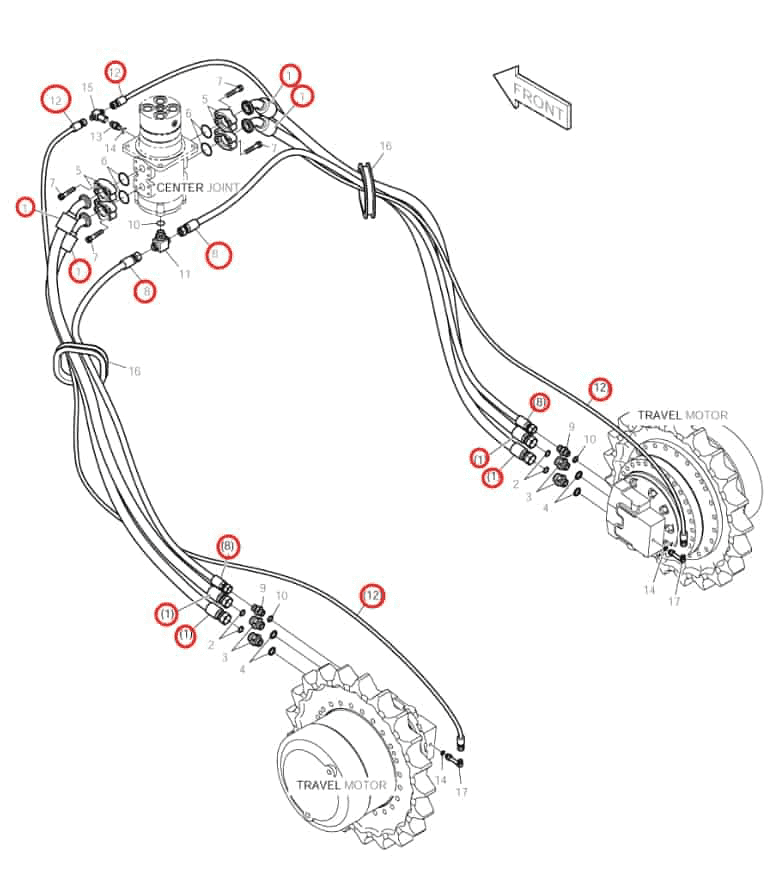

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number 2184-1026D435 before removing the hose.

Part number: 2184-1026D435
Diagram pipe number: 8
Installation route: Lower swivel joint → travel motorOriginal Chinese: 回转接头下~行走马达
Hose specification: DN13;1SN-08;16MPa
Finished length: 1,900 mm
Working pressure: 16 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 2

Same system

Diagram Pipe No. 12

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,650 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
