Individual hose record

4348510 Hose Repair Specifications

Excavator · Hitachi · ZX160LC · Attachments – Breaker

Finished length2,650 mm

Locate this hose

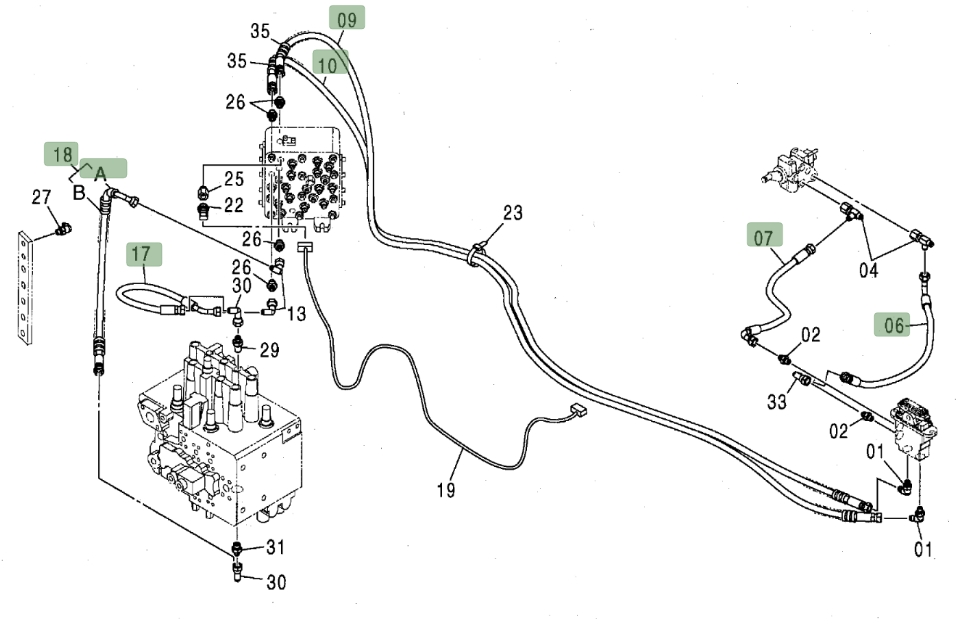

Installation diagram — Pipe No. 9

Locate Pipe No. 9 in the diagram, then confirm part number 4348510 before removing the hose.

Hitachi ZX160LC installation diagram showing hydraulic hose 4348510 at Pipe No. 9 — **Hitachi ZX160LC**Part 4348510 · Pipe No. 9Open full-size diagram

Repair specifications

Part number: 4348510
Diagram pipe number: 9
Installation route: 破碎器踏板~中转接头
Hose specification: DN10;1SN-6;7Mpa
Finished length: 2,650 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 3

4265833

Installation route: 大臂(前段)~大臂(后段)

Length: 1,300 mm
Specification: DN19;4SP-12;31Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 8

4269799

Installation route: 控制阀(破碎器)~过渡阀块(破碎器)

Length: 900 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 7

4269795

Installation route: 控制阀(破碎器)~过渡阀块(破碎器)

Length: 650 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 12

4452263

Installation route: 小臂破碎器截止阀右

Length: 1,800 mm
Specification: DN25;4SH-16;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 11

4188920

Installation route: 大臂(后段)~卸压安全阀(破碎器)

Length: 800 mm
Specification: DN19;4SP-12;38Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 11

4425783

Installation route: 分配阀右~过渡阀块(破碎器)

Length: 1,150 mm
Specification: DN10;2SN-6;34.5MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 16

4402701

Installation route: 控制阀(破碎器)~电磁阀(破碎器)

Length: 720 mm
Specification: DN6;1SN-4;7MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 25

4311809

Installation route: 控制阀(破碎器)~回油铁管(分配阀)

Length: 1,900 mm
Specification: DN12;1SN-8;7MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications
