Individual hose record
159213A1 Hose Repair Specifications
Excavator · Case · CX290D LC MH · Control Lever
Finished length1,150 mm
Locate this hose

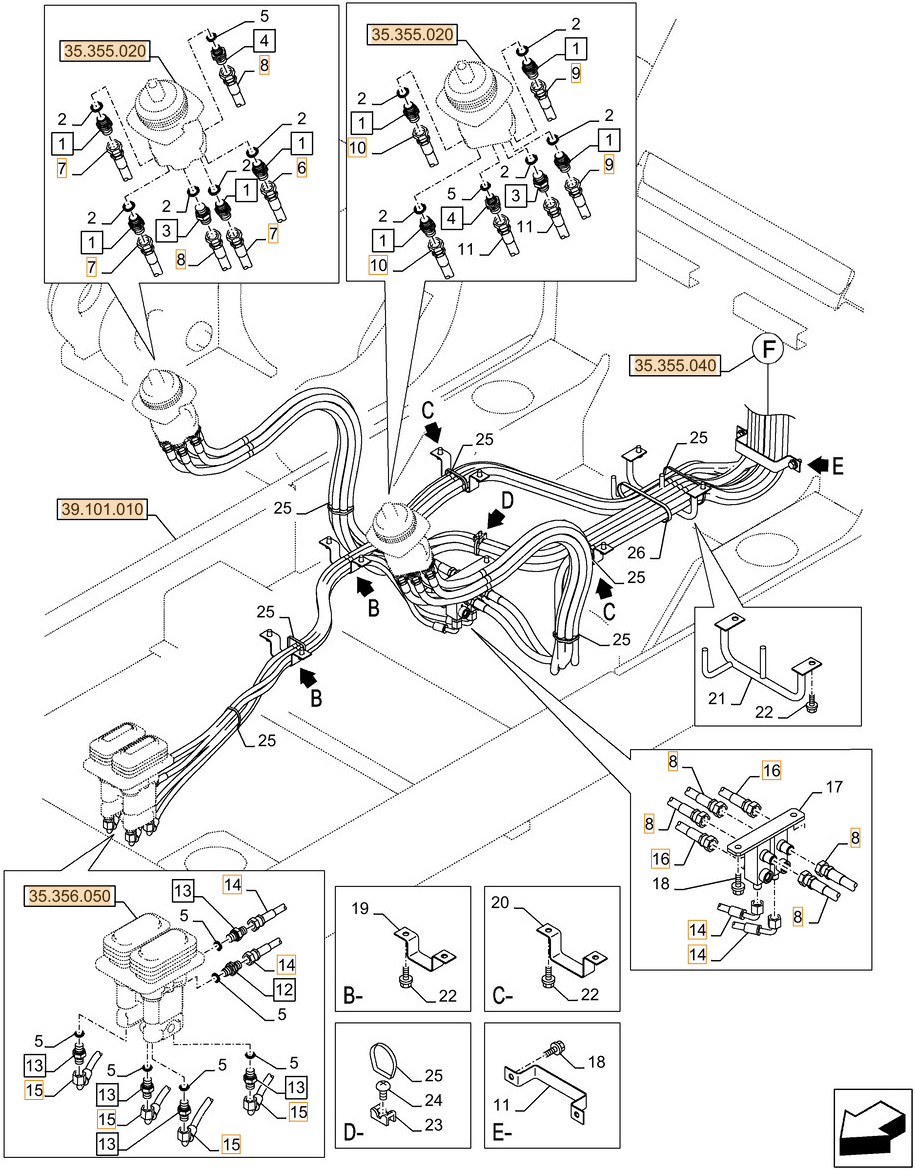

Installation diagram — Pipe No. 8
Locate Pipe No. 8 in the diagram, then confirm part number 159213A1 before removing the hose.
Repair specifications
- Part number
- 159213A1
- Diagram pipe number
- 8
- Installation route
- 右手柄~进回油阀
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 1,150 mm
- Working pressure
- 18 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Quantity
- 1
