Individual hose record

KHJ2438 Hose Repair Specifications

Excavator · Case · CX290D LC MH · Control Lever

Finished length1,650 mm

Locate this hose

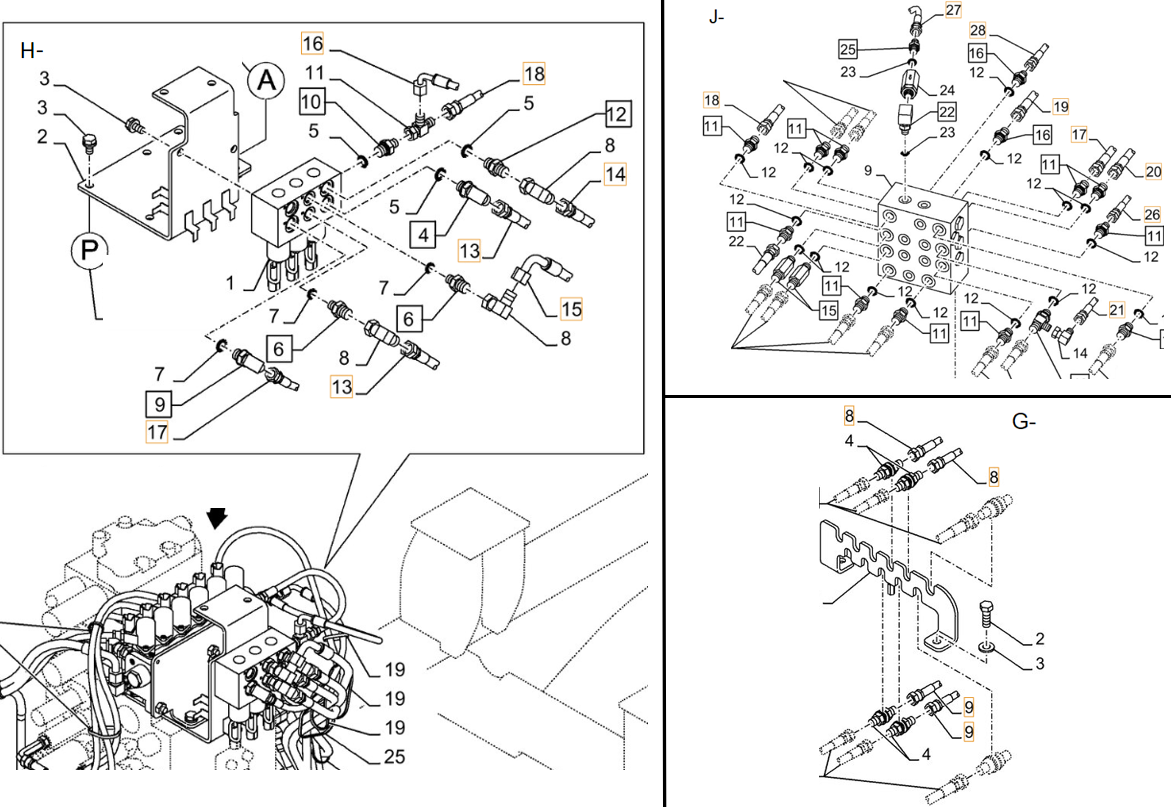

Installation diagram — Pipe No. H13

Locate Pipe No. H13 in the diagram, then confirm part number KHJ2438 before removing the hose.

Part number: KHJ2438
Diagram pipe number: H13
Installation route: 中转接头~节流阀(分配阀)
Hose specification: DN10;1SN-06;18MPa
Finished length: 1,650 mm
Working pressure: 18 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 2

Same system

Diagram Pipe No. J27

Installation route: Intermediate adapter → control valveOriginal Chinese: 中转接头~分配阀

Length: 1,400 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. J26

Installation route: Intermediate adapter → control valveOriginal Chinese: 中转接头~分配阀

Length: 1,350 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 8

Installation route: 右手柄~进回油阀

Length: 1,150 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
