Individual hose record
152435A1 Hose Repair Specifications
Excavator · Case · CX245D SR · Swivel Joint
Finished length2,150 mm
Locate this hose

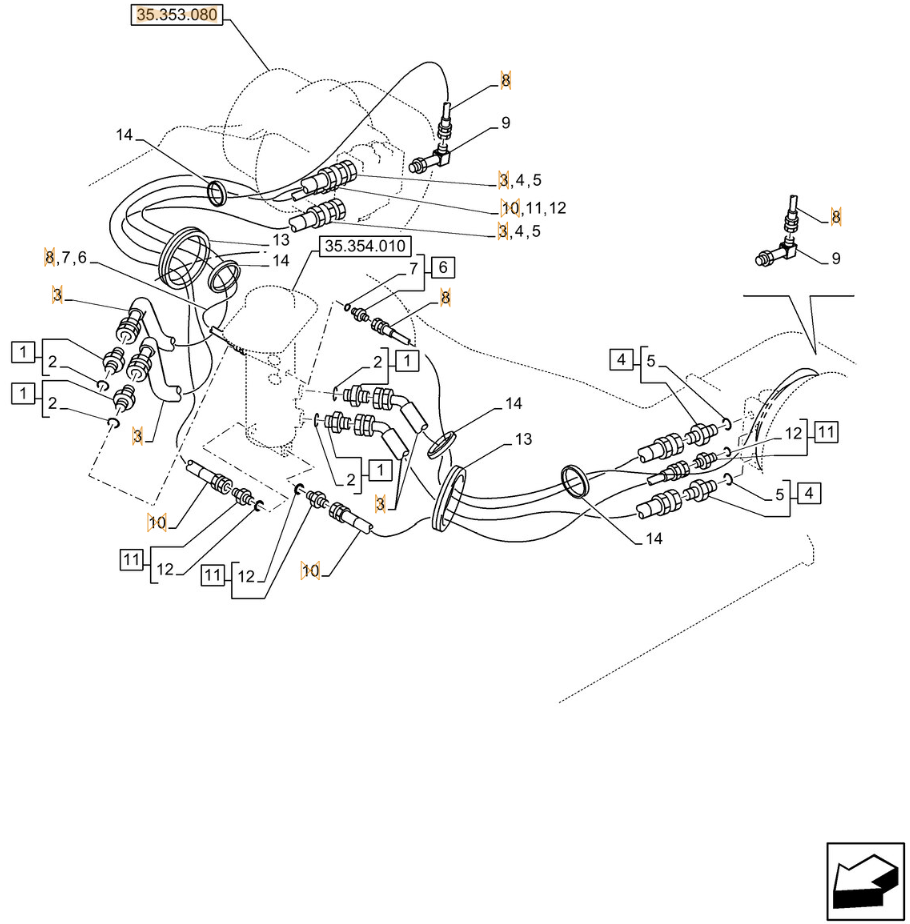

Installation diagram — Pipe No. 10
Locate Pipe No. 10 in the diagram, then confirm part number 152435A1 before removing the hose.
Repair specifications
- Part number
- 152435A1
- Diagram pipe number
- 10
- Installation route
- Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Hose specification
- DN13;2SN-08;27.5MPa
- Finished length
- 2,150 mm
- Working pressure
- 27.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Quantity
- 2
