Individual hose record
4453229 Hose Repair Specifications
Excavator · Hitachi · ZX600LC · Attachments
Finished length2,450 mm
Locate this hose

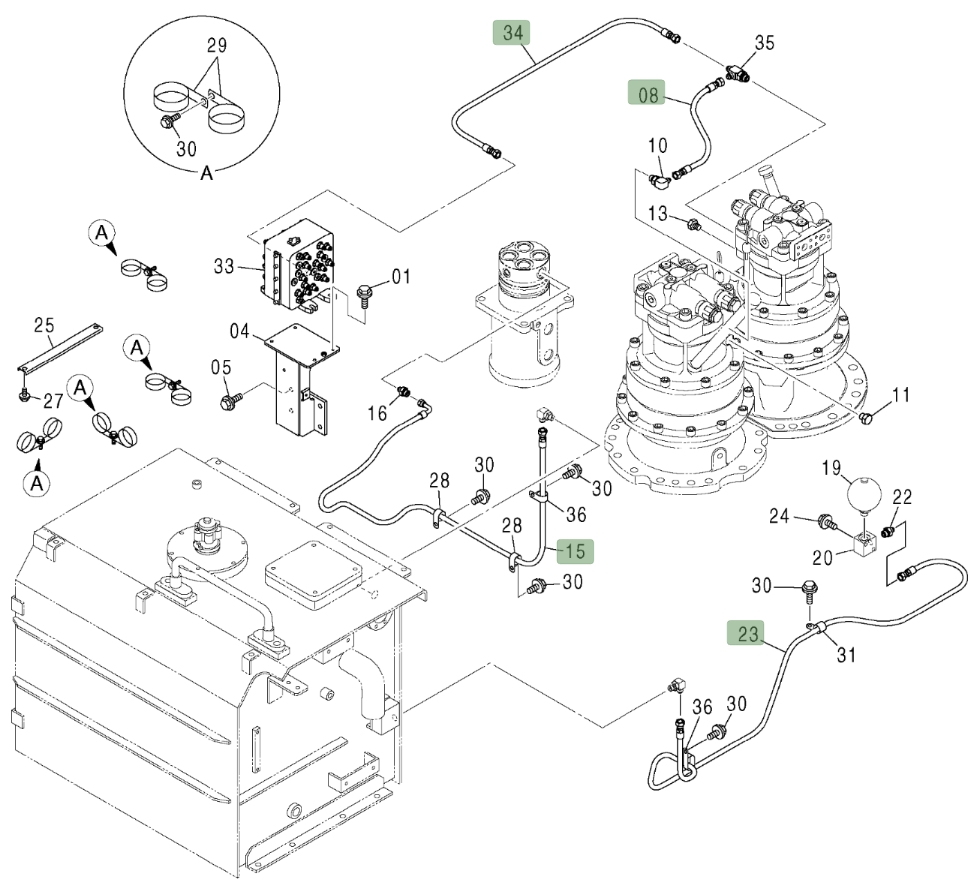

Installation diagram — Pipe No. 23
Locate Pipe No. 23 in the diagram, then confirm part number 4453229 before removing the hose.
Repair specifications
- Part number
- 4453229
- Diagram pipe number
- 23
- Installation route
- 蓄能器~过渡阀块(液压油箱)
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 2,450 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
