- Length
- 2,450 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
Individual hose record
4409086 Hose Repair Specifications
Excavator · Hitachi · ZX600LC · Attachments
Finished length2,650 mm
Locate this hose

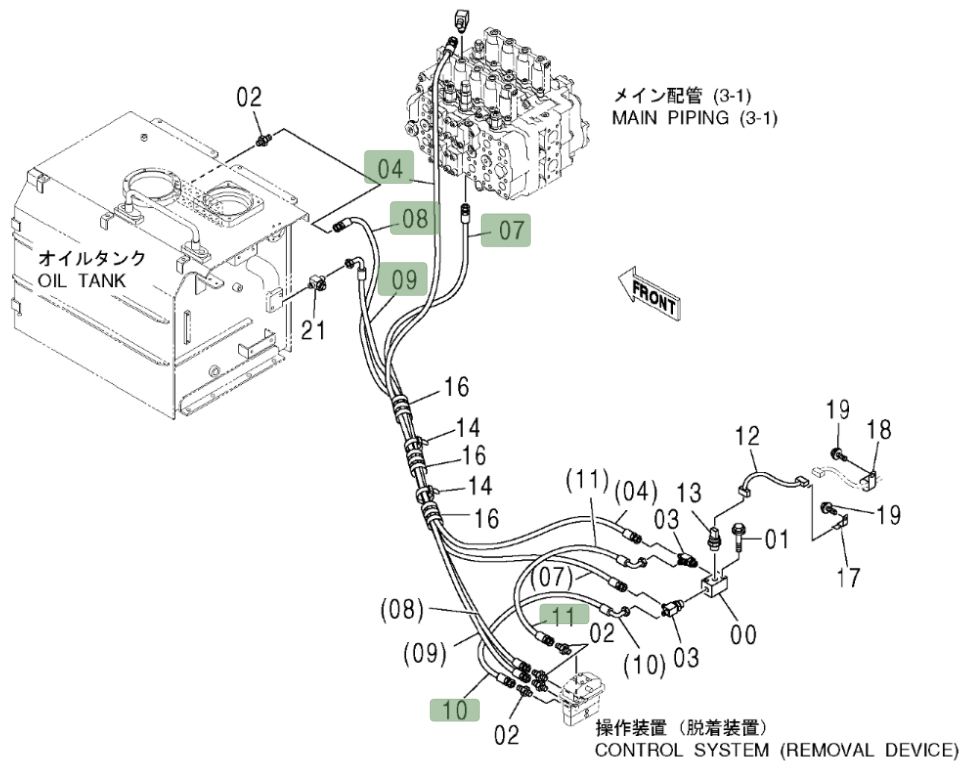

Installation diagram — Pipe No. 8
Locate Pipe No. 8 in the diagram, then confirm part number 4409086 before removing the hose.
Repair specifications
- Part number
- 4409086
- Diagram pipe number
- 8
- Installation route
- 配重自卸踏板~液压油箱
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 2,650 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
Same system
