Individual hose record

KBV15980 Hose Repair Specifications

Excavator · Case · CX500C · Attachments – Breaker

Finished length1,900 mm

Locate this hose

Installation diagram — Pipe No. 11

Locate Pipe No. 11 in the diagram, then confirm part number KBV15980 before removing the hose.

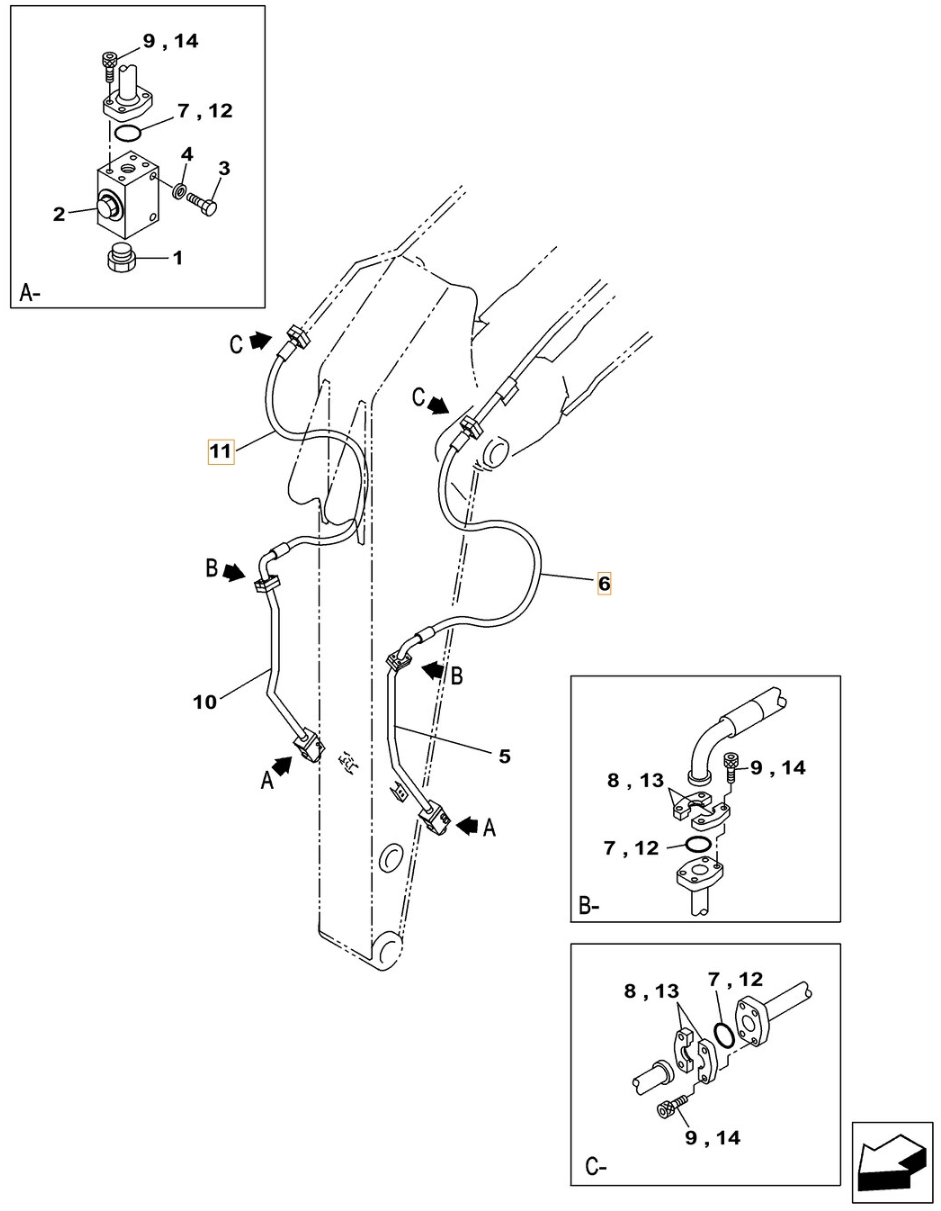

Case CX500C installation diagram showing hydraulic hose KBV15980 at Pipe No. 11 — **Case CX500C**Part KBV15980 · Pipe No. 11Open full-size diagram

Repair specifications

Part number: KBV15980
Diagram pipe number: 11
Installation route: 小臂破碎器截止阀右
Hose specification: DN32;6SH-20;42MPa
Finished length: 1,900 mm
Working pressure: 42 MPa
Left fitting: 法兰(分体式)-重型
Right fitting: 90°法兰(分体式)-重型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 62

KHJ2194

Installation route: 破碎器踏板~电磁阀(破碎器踏板)

Length: 650 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 90°英制内螺纹60°内锥
Right fitting: 英制内螺纹60°内锥

View full repair specifications

Diagram Pipe No. 78

KHJ2036

Installation route: 电磁阀(破碎器踏板)~进回油阀

Length: 750 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 47

KHJ2050

Installation route: 破碎器踏板~进回油阀

Length: 1,000 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 45

KHJ25060

Installation route: 破碎器踏板~分配阀前

Length: 3,250 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 63

KHJ12230

Installation route: 破碎器踏板~控制阀(破碎器)

Length: 3,450 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 61

KHJ2085

Installation route: 破碎器踏板~电磁阀(破碎器踏板)

Length: 600 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 64

KHJ2089

Installation route: 破碎器踏板~进回油阀

Length: 900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 英制内螺纹60°内锥
Right fitting: 英制内螺纹60°内锥

View full repair specifications

Diagram Pipe No. 79

KHJ14790

Installation route: 分配阀顶~电磁阀(破碎器踏板)

Length: 4,100 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications
