Individual hose record
4630934 Hose Repair Specifications
Excavator · Hitachi · ZXS370F-3 · Control Lever
Finished length1,050 mm
Locate this hose

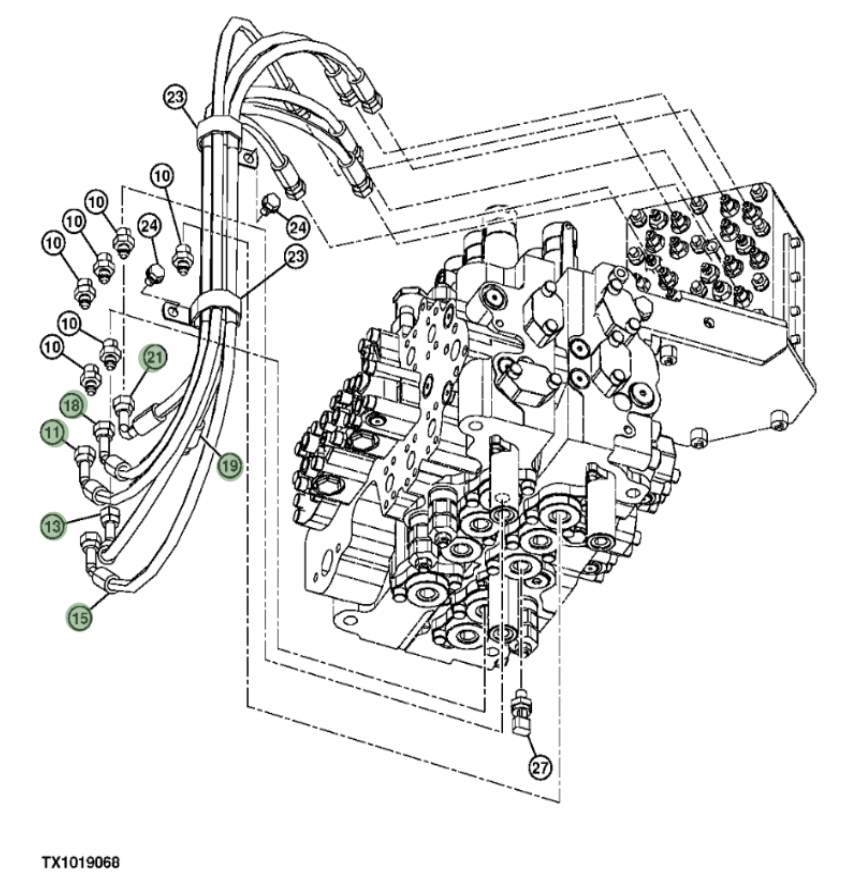

Installation diagram — Pipe No. 11
Locate Pipe No. 11 in the diagram, then confirm part number 4630934 before removing the hose.
Repair specifications
- Part number
- 4630934
- Diagram pipe number
- 11
- Installation route
- 中转接头~分配阀下
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 1,050 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 45°美制内螺纹74°内锥
- Quantity
- 1
