Individual hose record
DS2093013 Hose Repair Specifications
Excavator · Doosan · E57W · Solenoid Valve
Finished length460 mm
Locate this hose

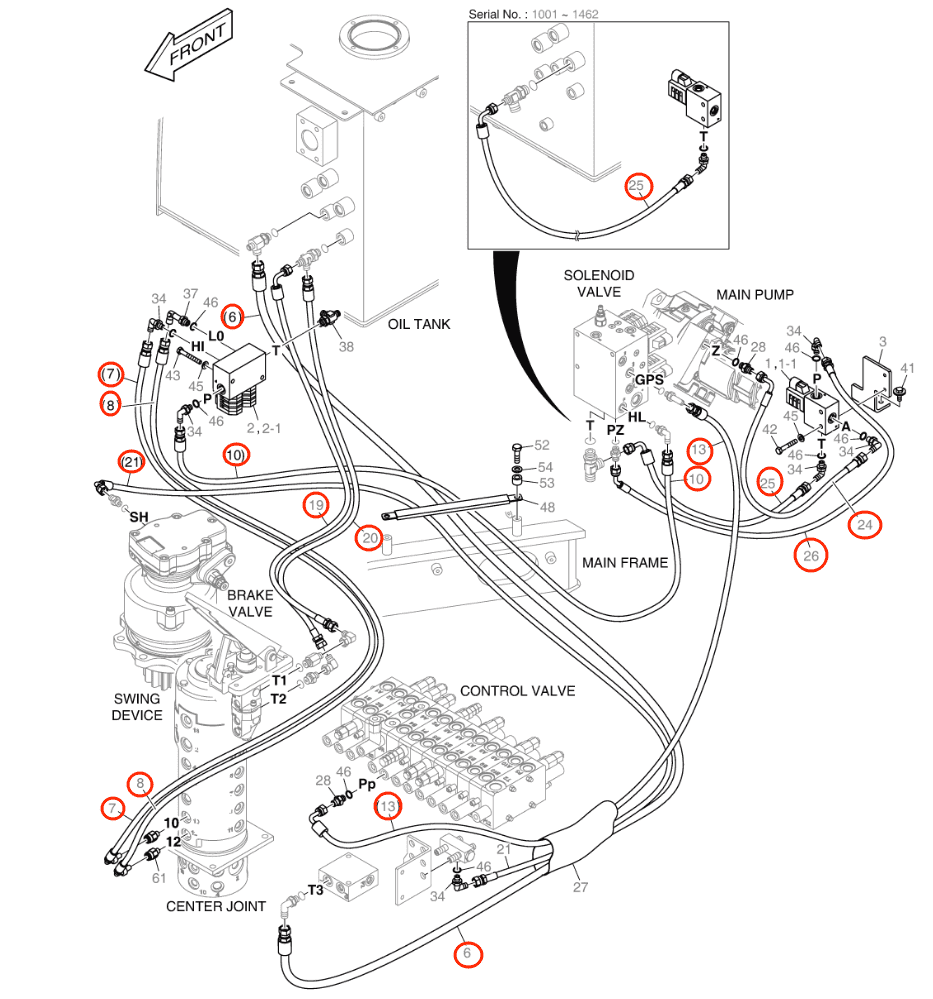

Installation diagram — Pipe No. 25
Locate Pipe No. 25 in the diagram, then confirm part number DS2093013 before removing the hose.
Repair specifications
- Part number
- DS2093013
- Diagram pipe number
- 25
- Installation route
- 电磁阀T口~电磁阀(支架)T口
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 460 mm
- Working pressure
- 22.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Quantity
- 1
