Individual hose record

164236A1 Hose Repair Specifications

Excavator · Case · CX160 · Attachments – Breaker

Finished length1,000 mm

Locate this hose

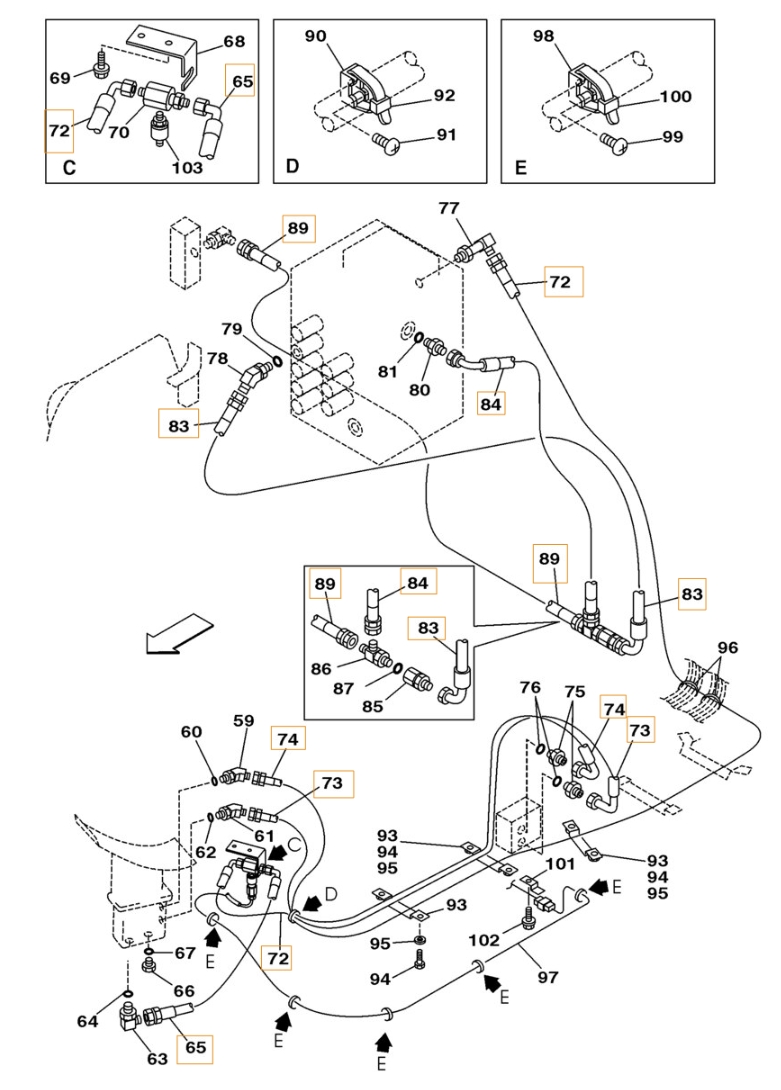

Installation diagram — Pipe No. 73

Locate Pipe No. 73 in the diagram, then confirm part number 164236A1 before removing the hose.

Case CX160 installation diagram showing hydraulic hose 164236A1 at Pipe No. 73 — **Case CX160**Part 164236A1 · Pipe No. 73Open full-size diagram

Repair specifications

Part number: 164236A1
Diagram pipe number: 73
Installation route: 破碎器踏板~进回油阀
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,000 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
