- Length
- 350 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Individual hose record
KHJ2318 Hose Repair Specifications
Excavator · Case · CX75SR · Solenoid Valve
Finished length1,400 mm
Locate this hose

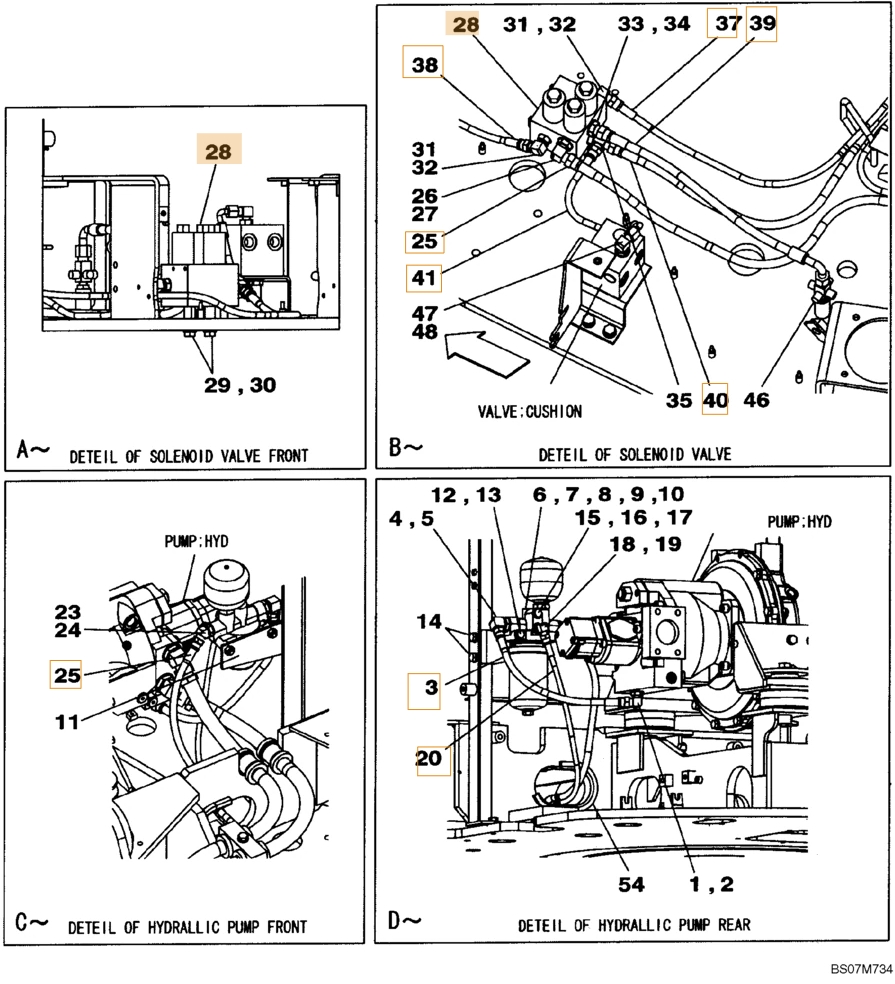

Installation diagram — Pipe No. 25
Locate Pipe No. 25 in the diagram, then confirm part number KHJ2318 before removing the hose.
Repair specifications
- Part number
- KHJ2318
- Diagram pipe number
- 25
- Installation route
- 电磁阀~先导滤芯
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 1,400 mm
- Working pressure
- 18 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Quantity
- 1
