Individual hose record
730502005419 Hose Repair Specifications
Excavator · Sunward · SWE215F-5 · Attachments
Finished length920 mm
Locate this hose

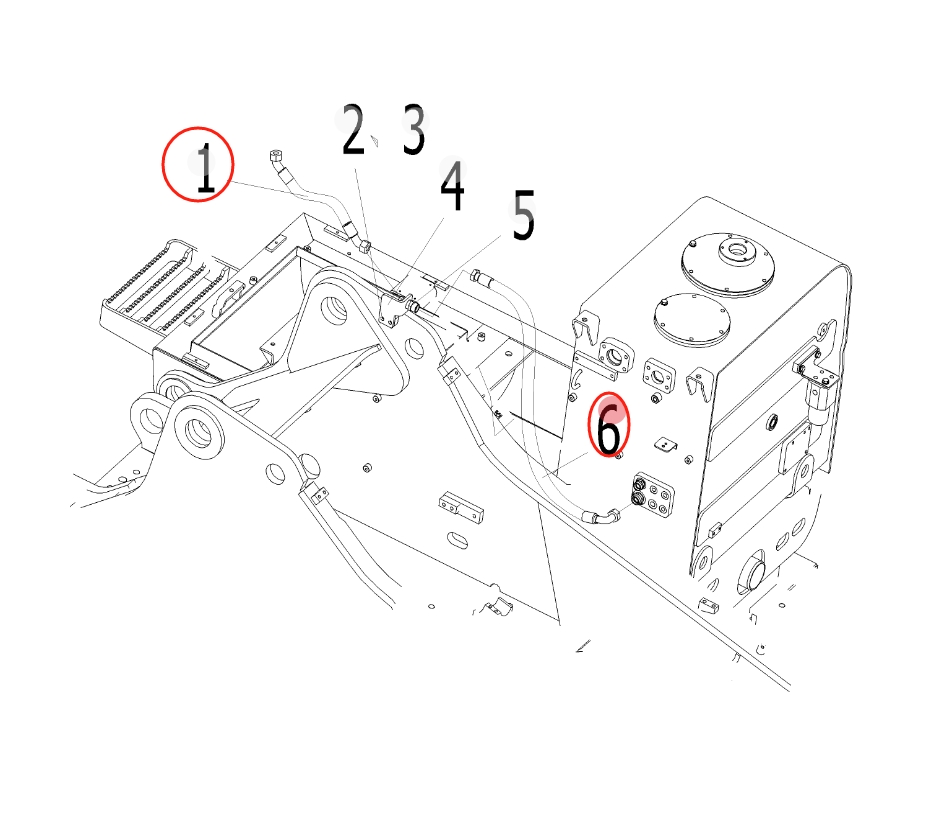

Installation diagram — Pipe No. 6
Locate Pipe No. 6 in the diagram, then confirm part number 730502005419 before removing the hose.
Repair specifications
- Part number
- 730502005419
- Diagram pipe number
- 6
- Installation route
- 液压油箱~接头(大臂下)
- Hose specification
- DN16;1SN-10;13.8MPa
- Finished length
- 920 mm
- Working pressure
- 13.8 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Quantity
- 1
