Individual hose record

4349806 Hose Repair Specifications

Excavator · Hitachi · ZX870LC-5B · Attachments

Finished length1,450 mm

Locate this hose

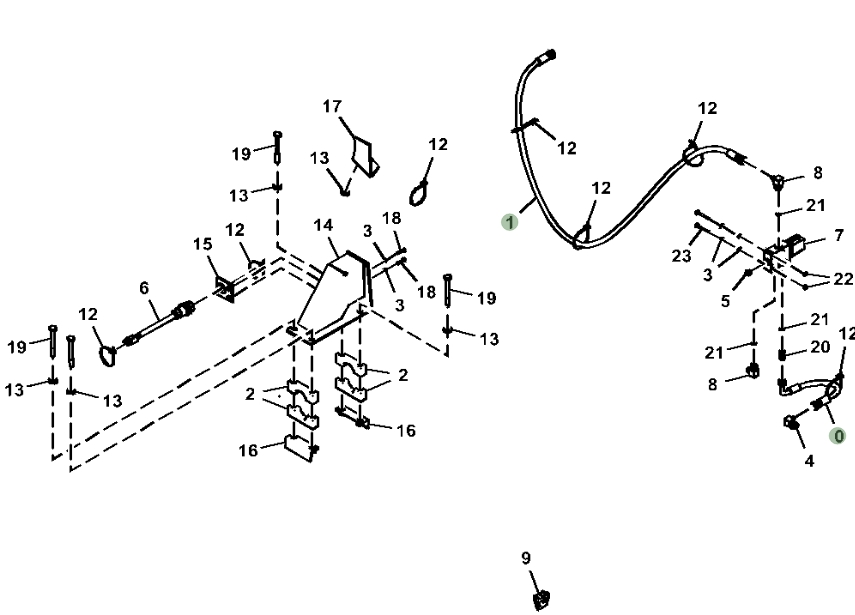

Installation diagram — Pipe No. 1

Locate Pipe No. 1 in the diagram, then confirm part number 4349806 before removing the hose.

Hitachi ZX870LC-5B installation diagram showing hydraulic hose 4349806 at Pipe No. 1
Hitachi ZX870LC-5BPart 4349806 · Pipe No. 1Open full-size diagram

Repair specifications

Part number
4349806
Diagram pipe number
1
Installation route
电磁阀~
Hose specification
DN10;1SN-06;18MPa
Finished length
1,450 mm
Working pressure
18 MPa
Left fitting
美制内螺纹74°内锥
Right fitting
美制内螺纹74°内锥
Quantity
1

Same system

Related Hoses

Diagram Pipe No. 48

4285797

Installation route: 过渡阀块(配重自卸)~铁管(配重自卸)

Length
650 mm
Specification
DN12;4SP-8;34.5Mpa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
View full repair specifications

Diagram Pipe No. 13

4441884

Installation route: 控制阀(配重自卸)~过渡阀块(配重自卸)

Length
360 mm
Specification
DN10;1SN-6;7Mpa
Left fitting
美制内螺纹37°内锥
Right fitting
90°美制内螺纹37°内锥
View full repair specifications

Diagram Pipe No. 12

4710438

Installation route: 配重自卸手柄~过渡阀块(配重自卸)

Length
420 mm
Specification
DN10;1SN-06;18MPa
Left fitting
美制内螺纹74°内锥
Right fitting
美制内螺纹74°内锥
View full repair specifications
