Individual hose record
4285797 Hose Repair Specifications
Excavator · Hitachi · ZX870LC-5B · Attachments
Finished length650 mm
Locate this hose

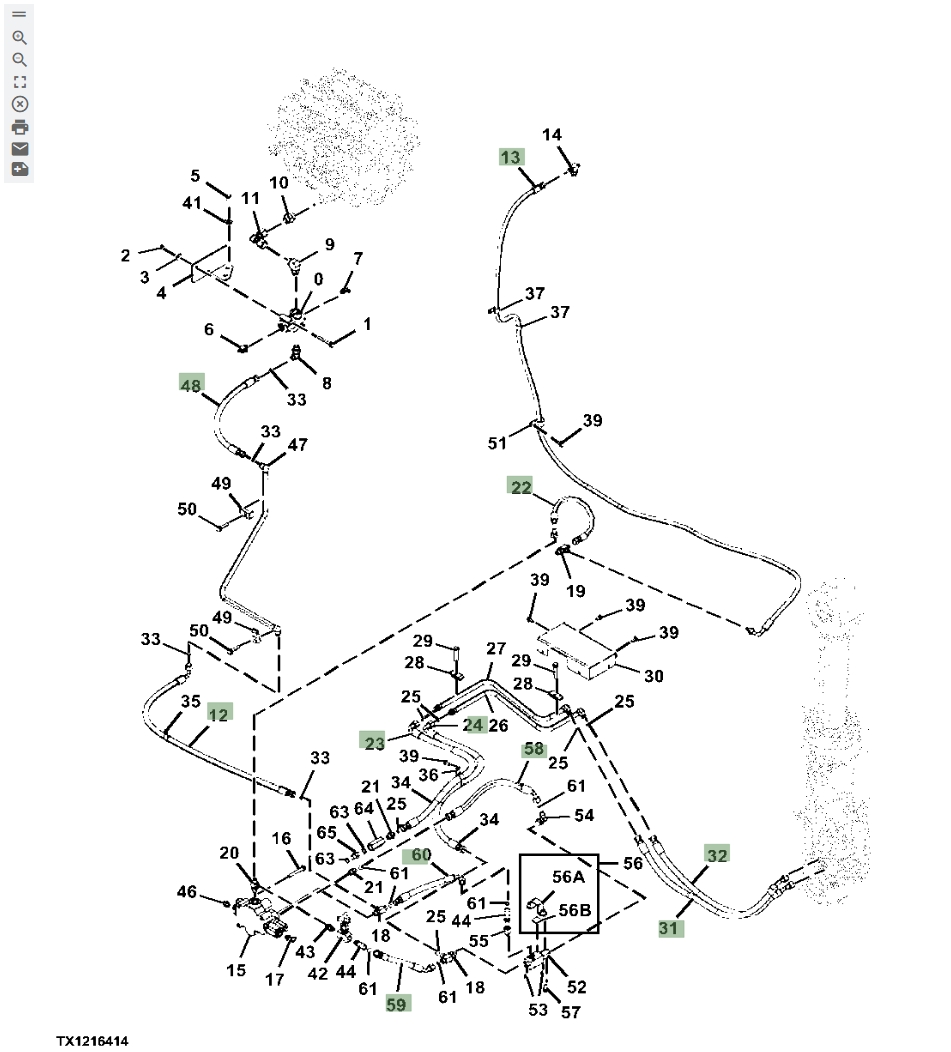

Installation diagram — Pipe No. 48
Locate Pipe No. 48 in the diagram, then confirm part number 4285797 before removing the hose.
Repair specifications
- Part number
- 4285797
- Diagram pipe number
- 48
- Installation route
- 过渡阀块(配重自卸)~铁管(配重自卸)
- Hose specification
- DN12;4SP-8;34.5Mpa
- Finished length
- 650 mm
- Working pressure
- 34.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
