Individual hose record
4636420 Hose Repair Specifications
Excavator · Hitachi · ZX85USB-5N · Hydraulic Tank
Finished length600 mm
Locate this hose

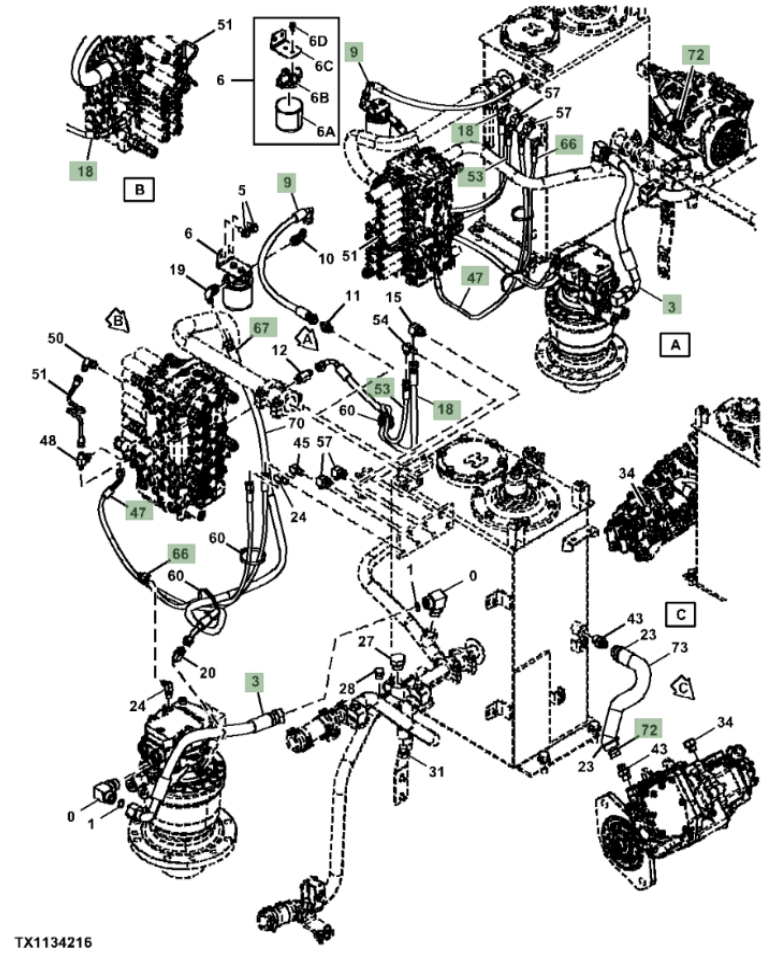

Installation diagram — Pipe No. 9
Locate Pipe No. 9 in the diagram, then confirm part number 4636420 before removing the hose.
Repair specifications
- Part number
- 4636420
- Diagram pipe number
- 9
- Installation route
- 液压油箱~先导滤芯(液压油箱)
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 600 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
