Individual hose record
4203028 Hose Repair Specifications
Excavator · Hitachi · EX100WD · Control Lever
Finished length1,100 mm
Locate this hose

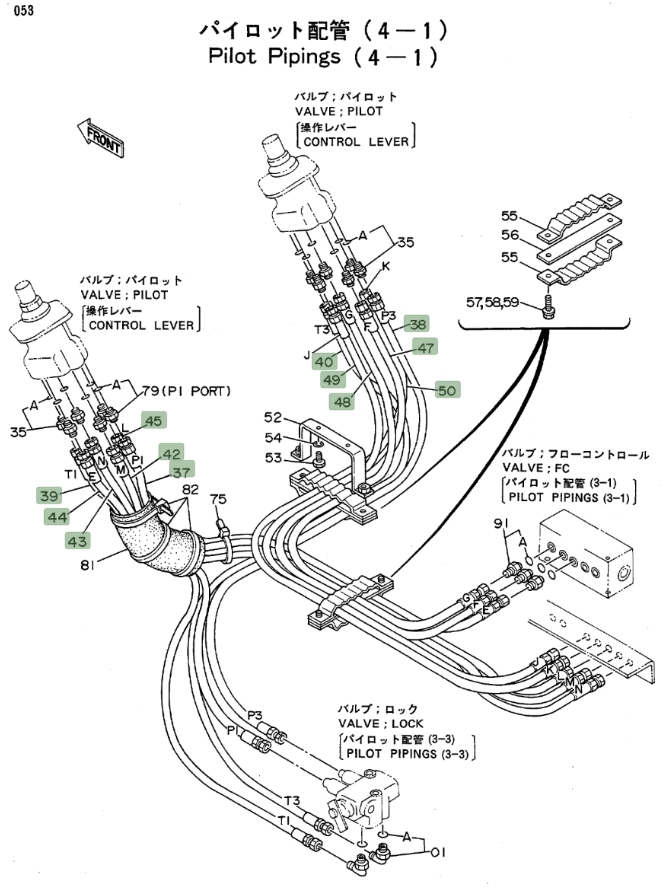

Installation diagram — Pipe No. 40
Locate Pipe No. 40 in the diagram, then confirm part number 4203028 before removing the hose.
Repair specifications
- Part number
- 4203028
- Diagram pipe number
- 40
- Installation route
- 右手柄~进回油阀
- Hose specification
- DN10;1层纤维-6;14MPa
- Finished length
- 1,100 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
