Individual hose record

KHJ2093 Hose Repair Specifications

Excavator · Case · CX370D LC · Control Valve

Finished length1,150 mm

Locate this hose

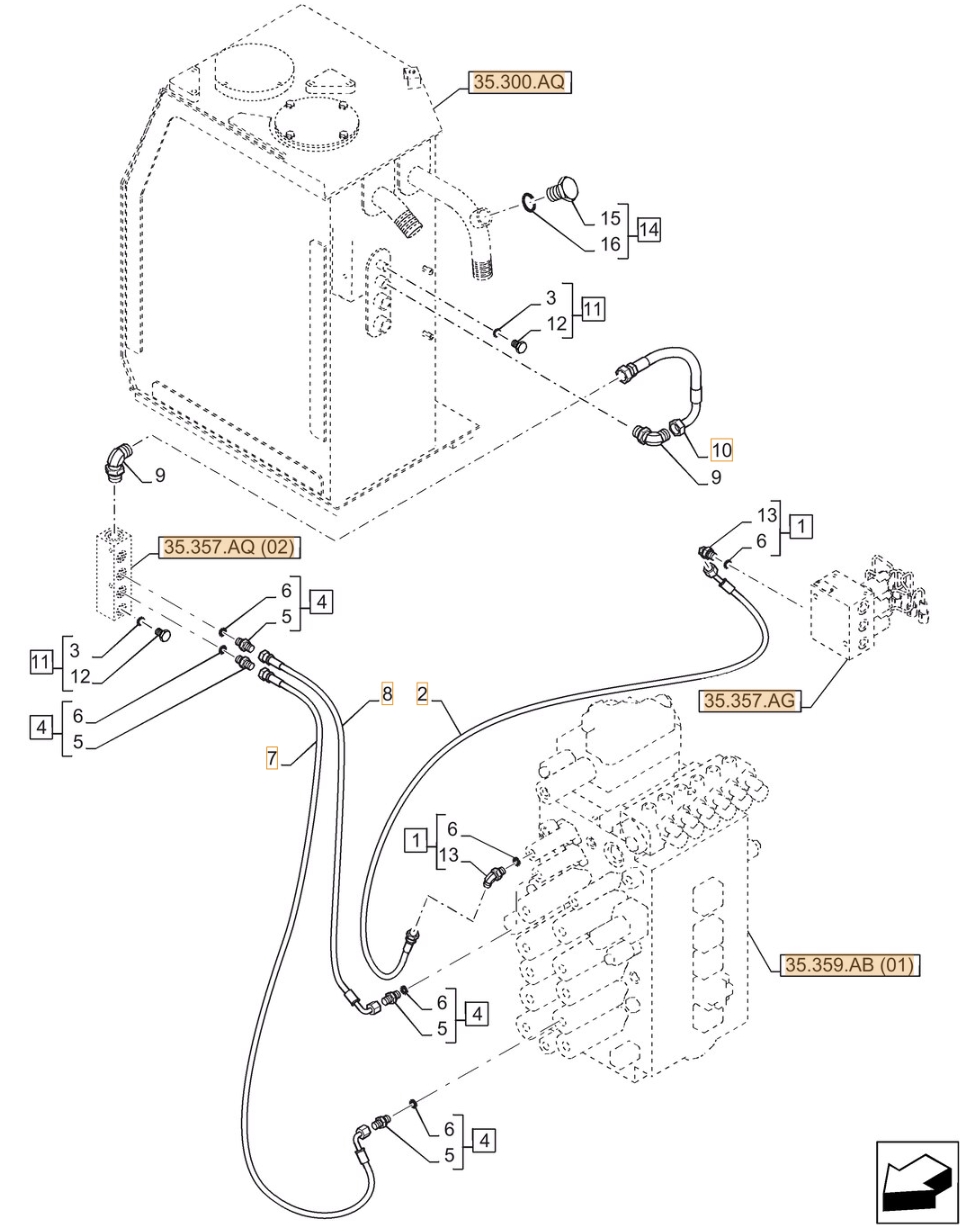

Installation diagram — Pipe No. 7

Locate Pipe No. 7 in the diagram, then confirm part number KHJ2093 before removing the hose.

Case CX370D LC installation diagram showing hydraulic hose KHJ2093 at Pipe No. 7 — **Case CX370D LC**Part KHJ2093 · Pipe No. 7Open full-size diagram

Repair specifications

Part number: KHJ2093
Diagram pipe number: 7
Installation route: 分配阀前左~液压油箱过渡阀块
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,150 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 2

KHJ2394

Installation route: 分配阀前右~电磁阀(分配阀)

Length: 550 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 5

KHJ2047

Installation route: 分配阀前左~电磁阀(分配阀)

Length: 650 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 15

KHJ2163

Installation route: 分配阀后左~液压油箱过渡阀块

Length: 620 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 10

KHJ2342

Installation route: 分配阀前左~分配阀前右

Length: 380 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 15

KHJ2194

Installation route: 分配阀后左~液压油箱过渡阀块

Length: 650 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 90°英制内螺纹60°内锥
Right fitting: 英制内螺纹60°内锥

View full repair specifications

Diagram Pipe No. 7

KHJ2190

Installation route: 分配阀左~电磁阀(分配阀)

Length: 420 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 16

KHJ16200

Installation route: 分配阀后左~电磁阀(分配阀)

Length: 400 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 1

KHJ14910

Installation route: 分配阀前右~电磁阀(分配阀)

Length: 800 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

View full repair specifications
