- Length
- 1,750 mm
- Specification
- DN6;1SN-4;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
Individual hose record
4442654 Hose Repair Specifications
Excavator · Hitachi · ZX225USLC · Swing Motor
Finished length1,750 mm
Locate this hose

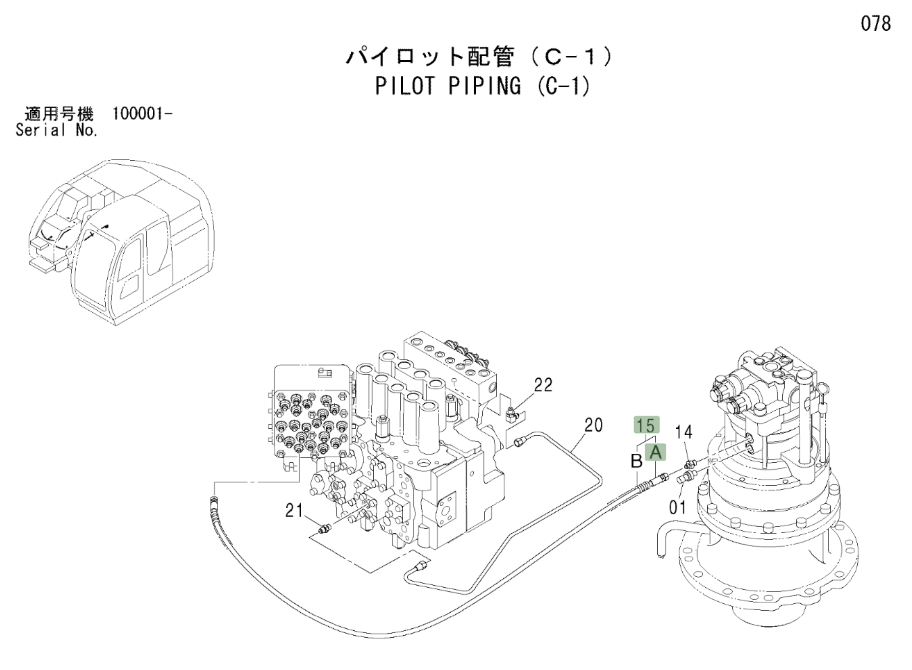

Installation diagram — Pipe No. 15A
Locate Pipe No. 15A in the diagram, then confirm part number 4442654 before removing the hose.
Repair specifications
- Part number
- 4442654
- Diagram pipe number
- 15A
- Installation route
- 回转马达~中转接头
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 1,750 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
