Individual hose record
DS20551300 Hose Repair Specifications
Excavator · Doosan · DX63-3 · Boom Assembly
Finished length890 mm
Locate this hose

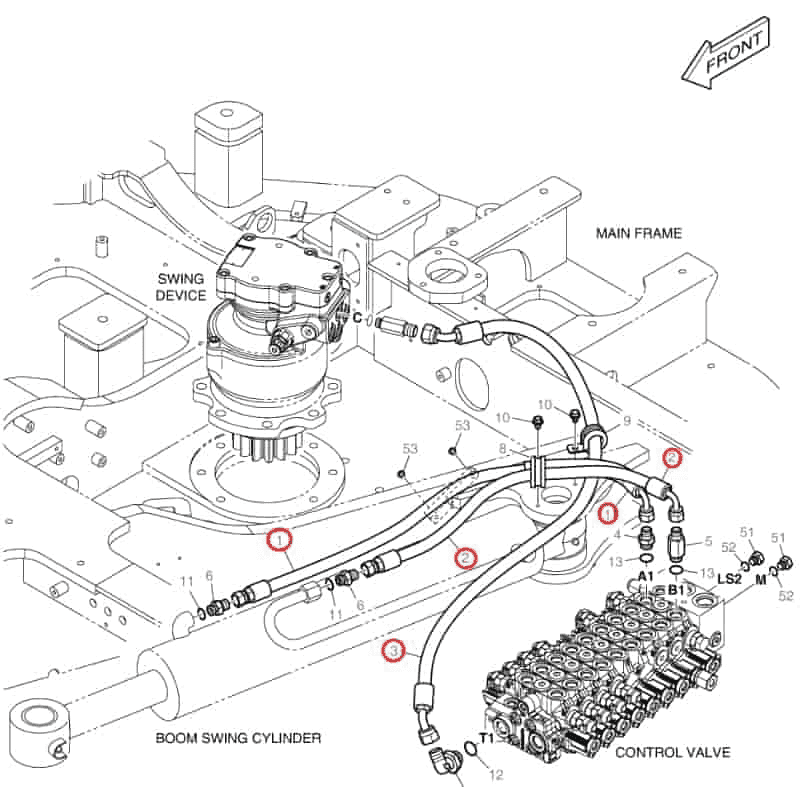

Installation diagram — Pipe No. 1
Locate Pipe No. 1 in the diagram, then confirm part number DS20551300 before removing the hose.
Repair specifications
- Part number
- DS20551300
- Diagram pipe number
- 1
- Installation route
- 大臂摆动油缸~分配阀A1口
- Hose specification
- DN10;2SN-06;33MPa
- Finished length
- 890 mm
- Working pressure
- 33 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Quantity
- 1
