Individual hose record

4209724 Hose Repair Specifications

Excavator · Hitachi · EX100WD · Swivel Joint

Finished length1,050 mm

Locate this hose

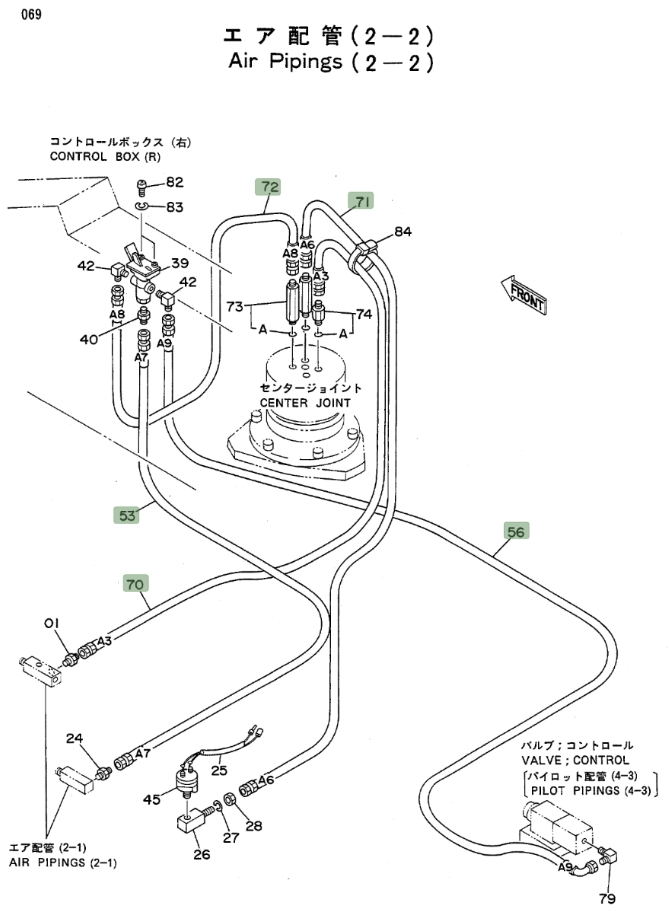

Installation diagram — Pipe No. 70

Locate Pipe No. 70 in the diagram, then confirm part number 4209724 before removing the hose.

Hitachi EX100WD installation diagram showing hydraulic hose 4209724 at Pipe No. 70 — Hitachi EX100WDPart 4209724 · Pipe No. 70Open full-size diagram

Repair specifications

Part number: 4209724
Diagram pipe number: 70
Installation route: 回转接头~过渡阀块(刹车踏板)
Hose specification: DN10;4层纤维-6;3.5MPa
Finished length: 1,050 mm
Working pressure: 3.5 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1
