Individual hose record

KHJ2054 Hose Repair Specifications

Excavator · Case · CX210D NLC 2PB · Control Valve

Finished length1,200 mm

Locate this hose

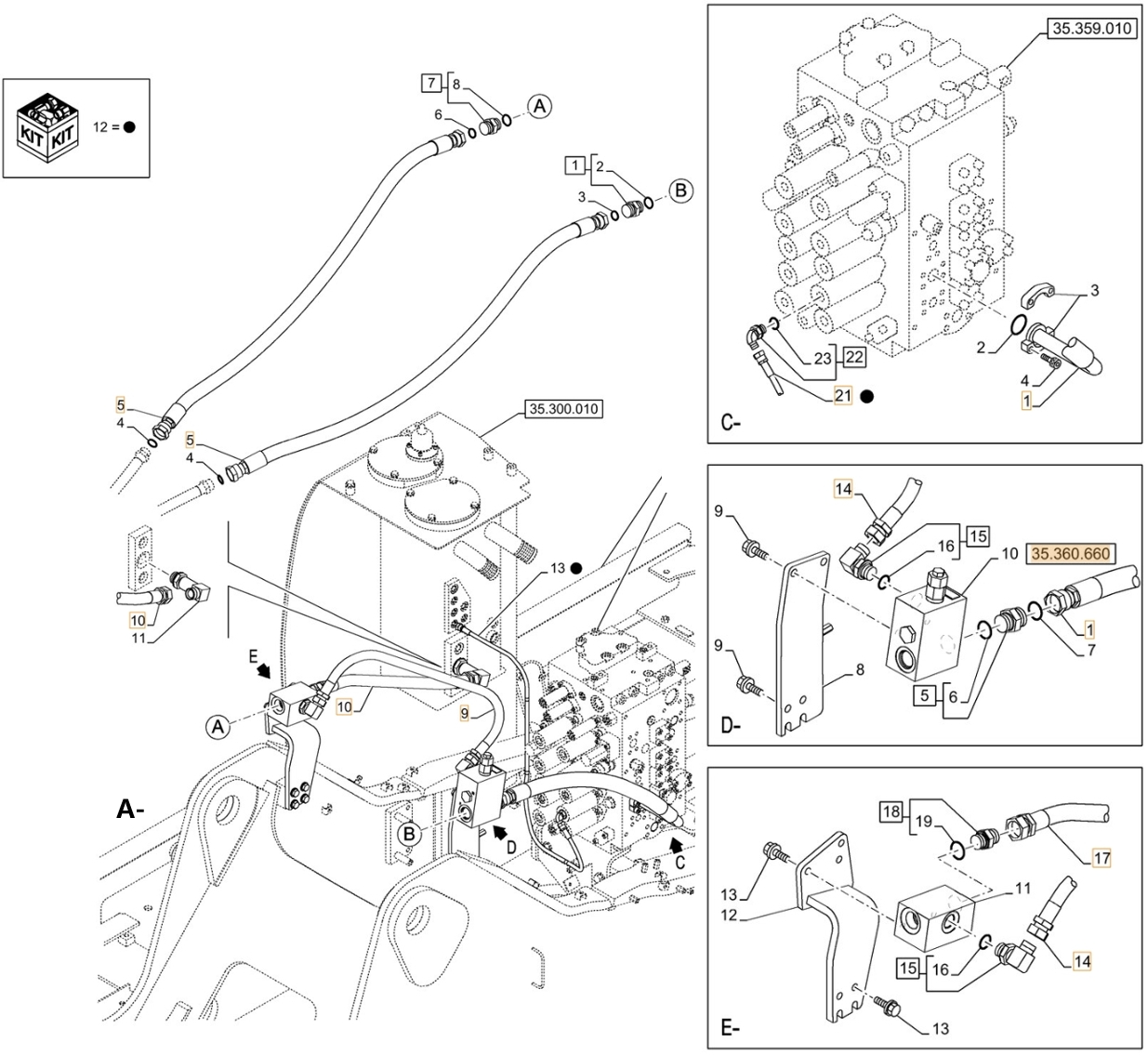

Installation diagram — Pipe No. A13-C21

Locate Pipe No. A13-C21 in the diagram, then confirm part number KHJ2054 before removing the hose.

Part number: KHJ2054
Diagram pipe number: A13-C21
Installation route: 分配阀前~液压油箱
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,200 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. H28

Installation route: 分配阀后~分配阀后

Length: 3,750 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. H27-I27

Installation route: 分配阀后~液压油箱

Length: 750 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. H31-I31

Installation route: 分配阀前~液压油箱

Length: 500 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
