- Length
- 1,100 mm
- Specification
- DN10;1SN-6;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
Individual hose record
4375859 Hose Repair Specifications
Excavator · Hitachi · EX750-5 · Control Valve
Finished length900 mm
Locate this hose

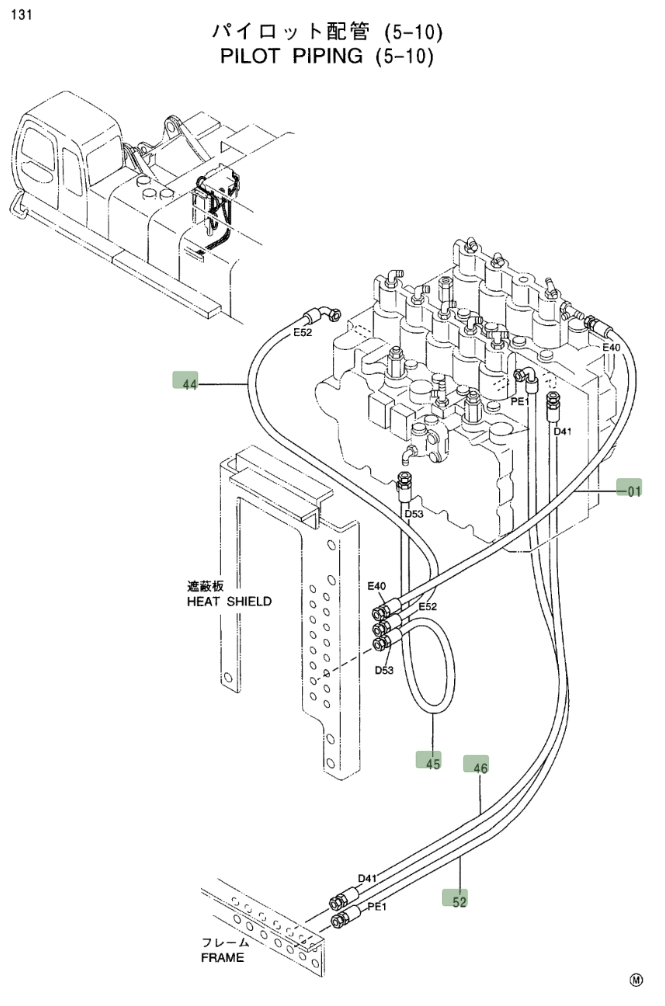

Installation diagram — Pipe No. 45
Locate Pipe No. 45 in the diagram, then confirm part number 4375859 before removing the hose.
Repair specifications
- Part number
- 4375859
- Diagram pipe number
- 45
- Installation route
- 分配阀左~接线板(遮蔽板)
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 900 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
