Individual hose record
730502003028 Hose Repair Specifications
Excavator · Sunward · SWE150E · Swing Motor
Finished length430 mm
Locate this hose

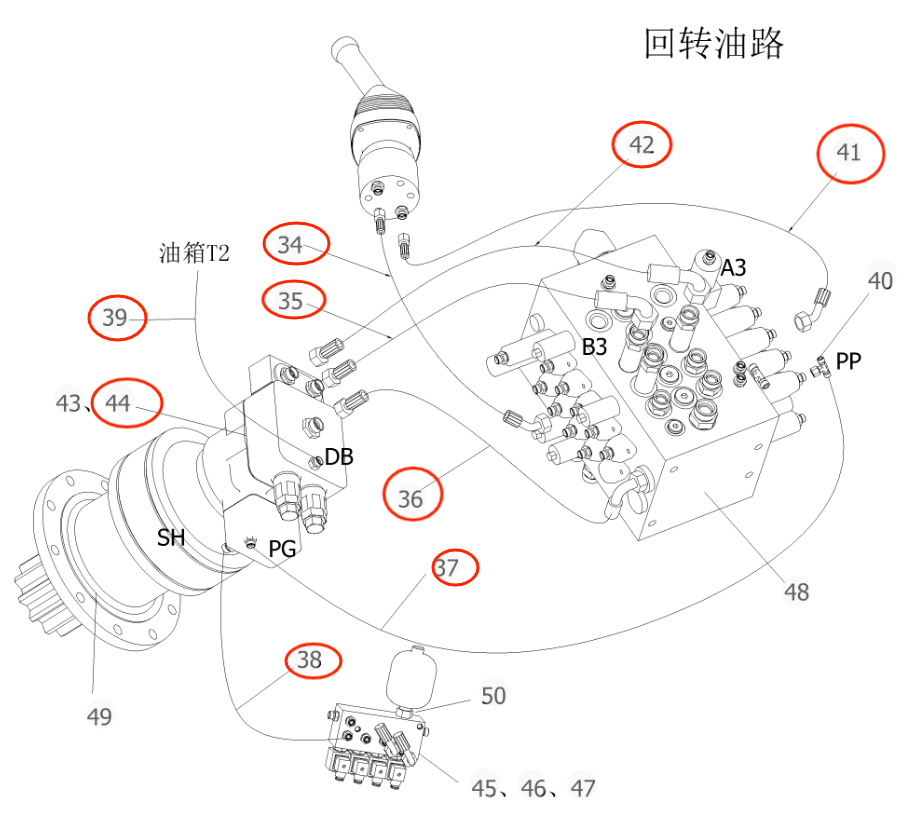

Installation diagram — Pipe No. 39
Locate Pipe No. 39 in the diagram, then confirm part number 730502003028 before removing the hose.
Repair specifications
- Part number
- 730502003028
- Diagram pipe number
- 39
- Installation route
- 回转马达DB~液压油箱T2
- Hose specification
- DN10;2SN-06;35MPa
- Finished length
- 430 mm
- Working pressure
- 35 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Quantity
- 1
