Individual hose record

4651260 Hose Repair Specifications

Excavator · Hitachi · ZX160LC-6N · Boom Assembly

Finished length1,650 mm

Locate this hose

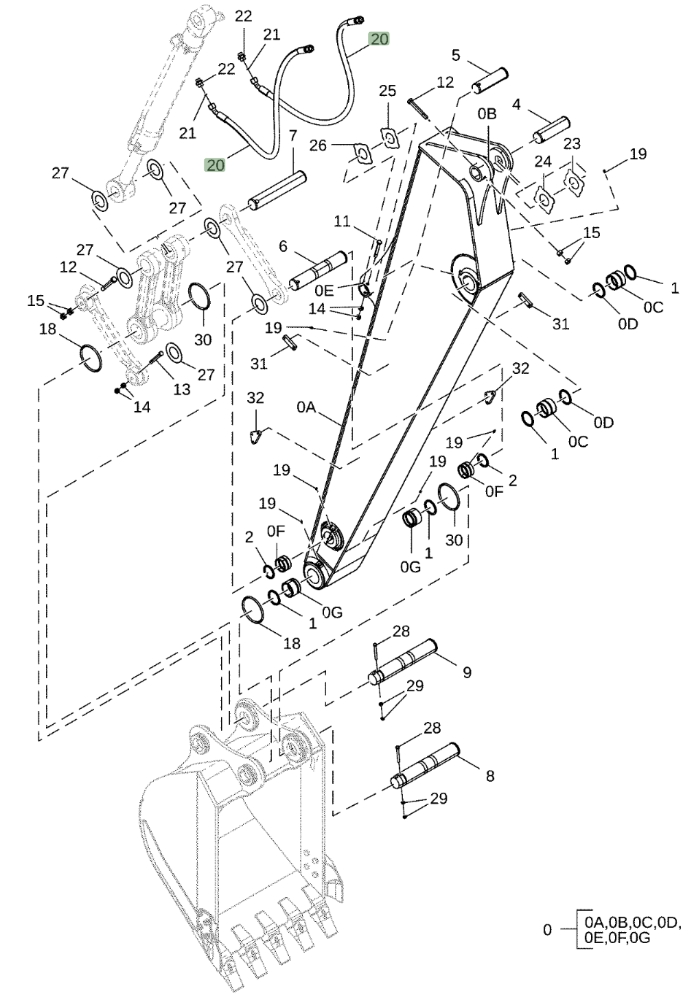

Installation diagram — Pipe No. 20

Locate Pipe No. 20 in the diagram, then confirm part number 4651260 before removing the hose.

Part number: 4651260
Diagram pipe number: 20
Installation route: Bucket cylinderOriginal Chinese: 铲斗油缸
Hose specification: DN19;4SP-12;35Mpa
Finished length: 1,650 mm
Working pressure: 35 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 45°美制内螺纹平面密封
Quantity: 2

Same system

Diagram Pipe No. 10

Installation route: 大臂油缸

Length: 700 mm
Specification: DN16;4SP-10;38Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 24

Installation route: Bucket cylinderOriginal Chinese: 铲斗油缸

Length: 1,350 mm
Specification: DN19;4SP-12;35Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 6

Installation route: 小臂油缸

Length: 900 mm
Specification: DN19;4SH-12;42MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 6

Installation route: 小臂油缸

Length: 880 mm
Specification: DN19;4SH-12;42MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
