Individual hose record
4442040 Hose Repair Specifications
Excavator · Hitachi · ZX80 · Supply and Return Valve
Finished length2,050 mm
Locate this hose

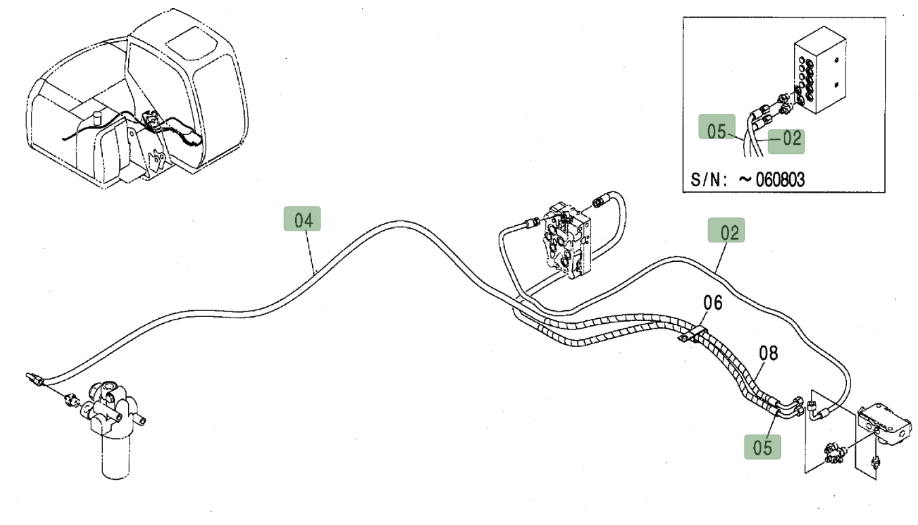

Installation diagram — Pipe No. 5
Locate Pipe No. 5 in the diagram, then confirm part number 4442040 before removing the hose.
Repair specifications
- Part number
- 4442040
- Diagram pipe number
- 5
- Installation route
- 进回油阀~中转接头
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 2,050 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 1
