Individual hose record

73050200B688 Hose Repair Specifications

Excavator · Sunward · SWE80F-1A · Swing Motor

Finished length580 mm

Locate this hose

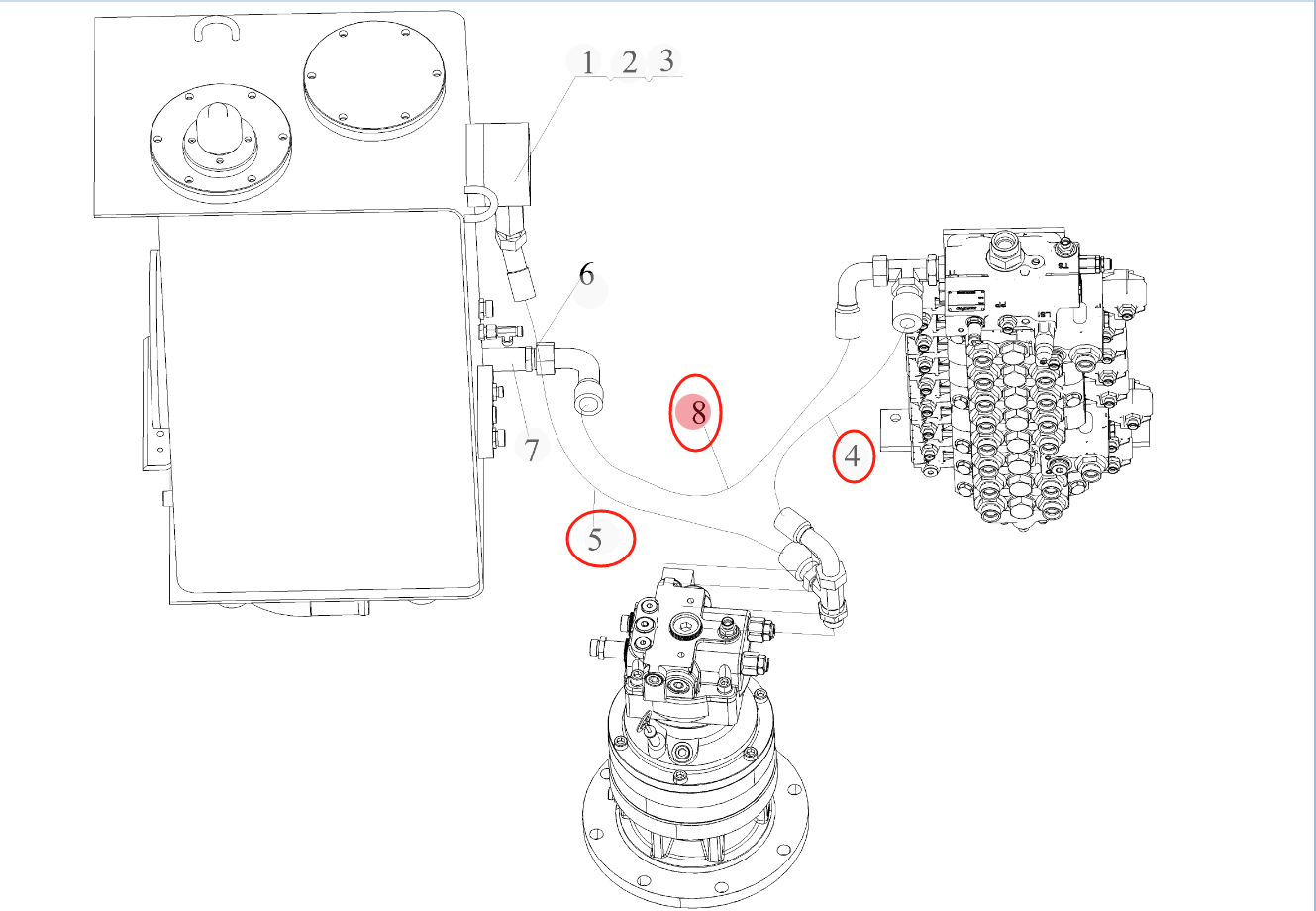

Installation diagram — Pipe No. 5

Locate Pipe No. 5 in the diagram, then confirm part number 73050200B688 before removing the hose.

Sunward SWE80F-1A installation diagram showing hydraulic hose 73050200B688 at Pipe No. 5 — Sunward SWE80F-1APart 73050200B688 · Pipe No. 5Open full-size diagram

Repair specifications

Part number: 73050200B688
Diagram pipe number: 5
Installation route: 回转马达~液压油箱
Hose specification: DN25;1SN-16;8.8MPa
Finished length: 580 mm
Working pressure: 8.8 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 45°公制内螺纹24°锥带O形圈-轻型
Quantity: 1
