Individual hose record
4431843 Hose Repair Specifications
Excavator · Hitachi · ZX230W-5N · Attachments – Breaker
Finished length3,000 mm
Locate this hose

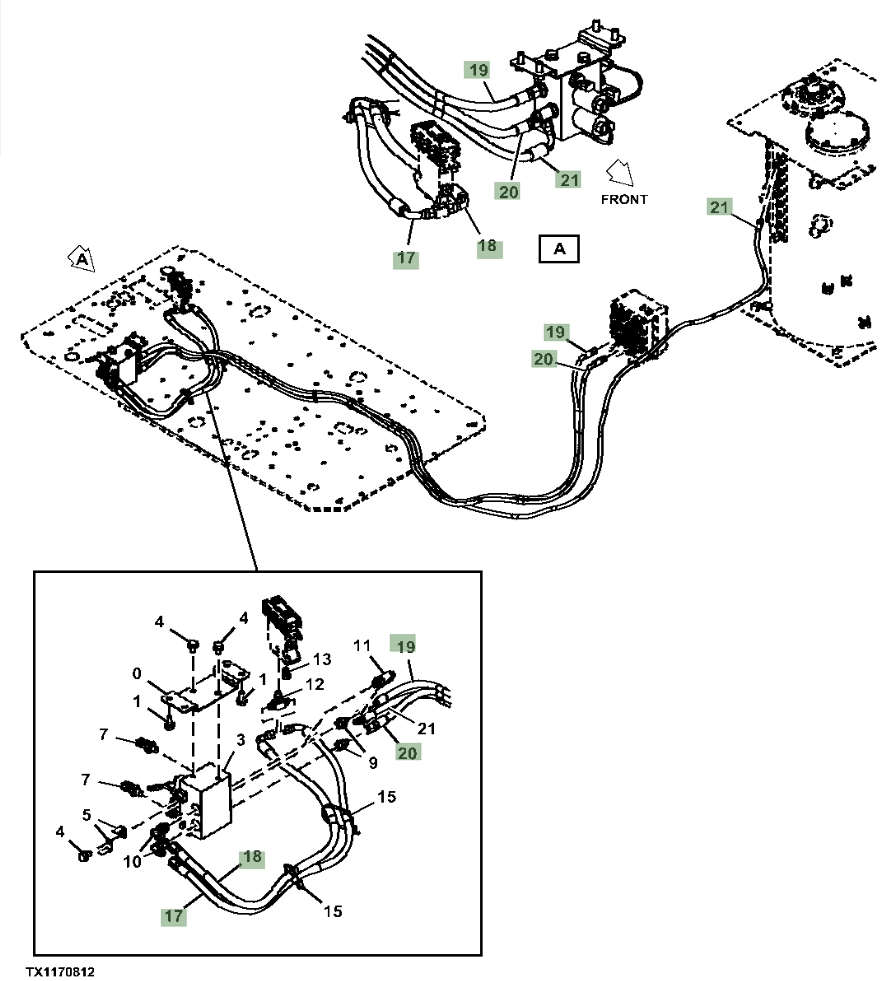

Installation diagram — Pipe No. 19
Locate Pipe No. 19 in the diagram, then confirm part number 4431843 before removing the hose.
Repair specifications
- Part number
- 4431843
- Diagram pipe number
- 19
- Installation route
- 中转接头~电磁阀(踏板)
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 3,000 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
